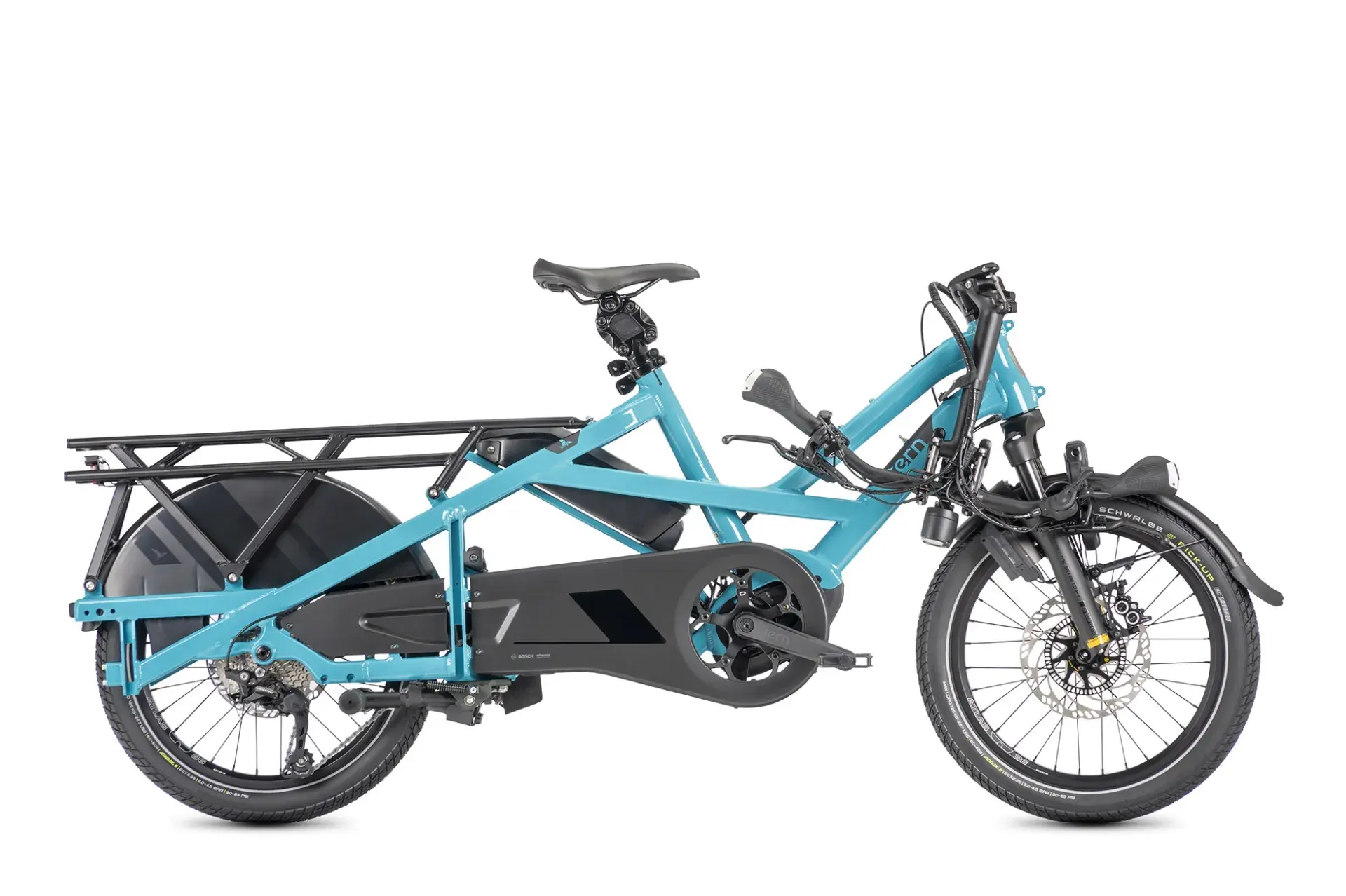

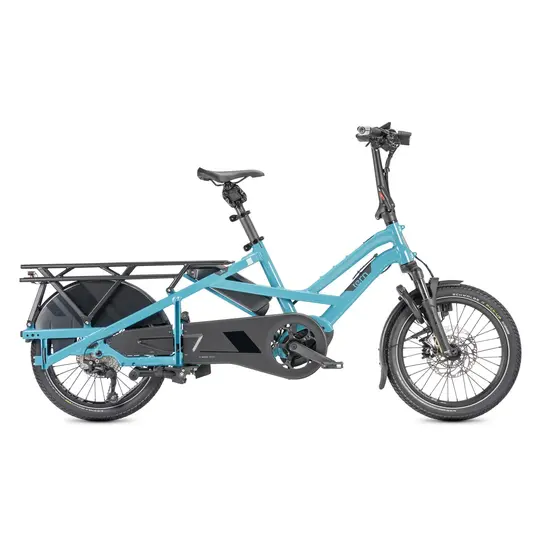

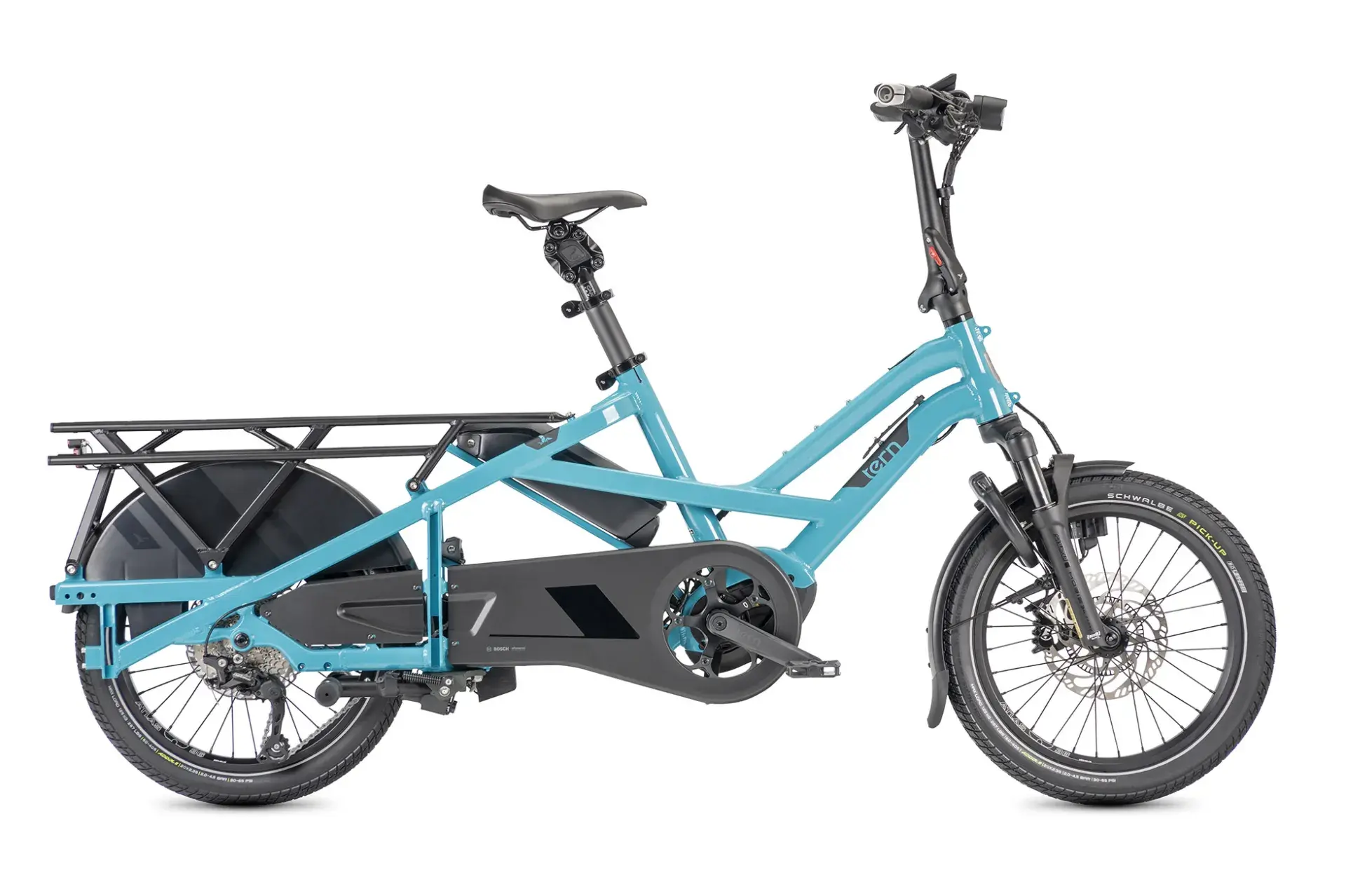

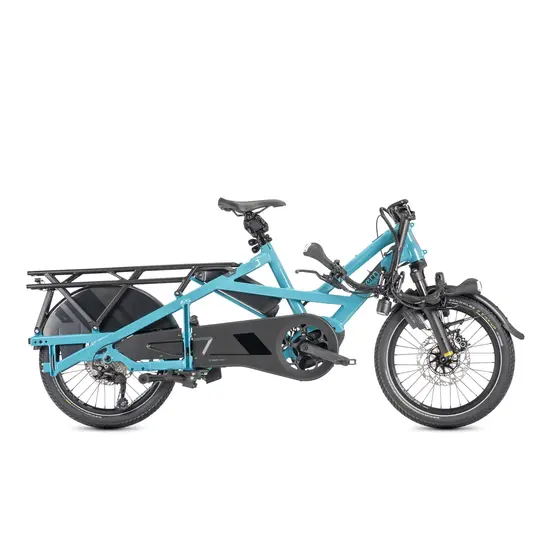

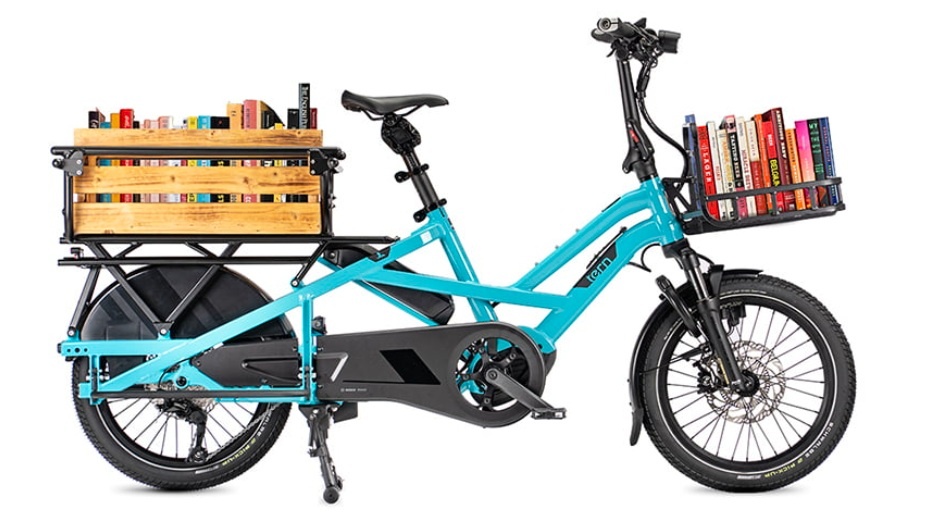

Tern E-Cargo Bike - GSD S10 - Gen 3
£5,900.00
Description
Meet the Tern GSD: Our Best Cargo eBike for Families
Still Getting Sh!t Done

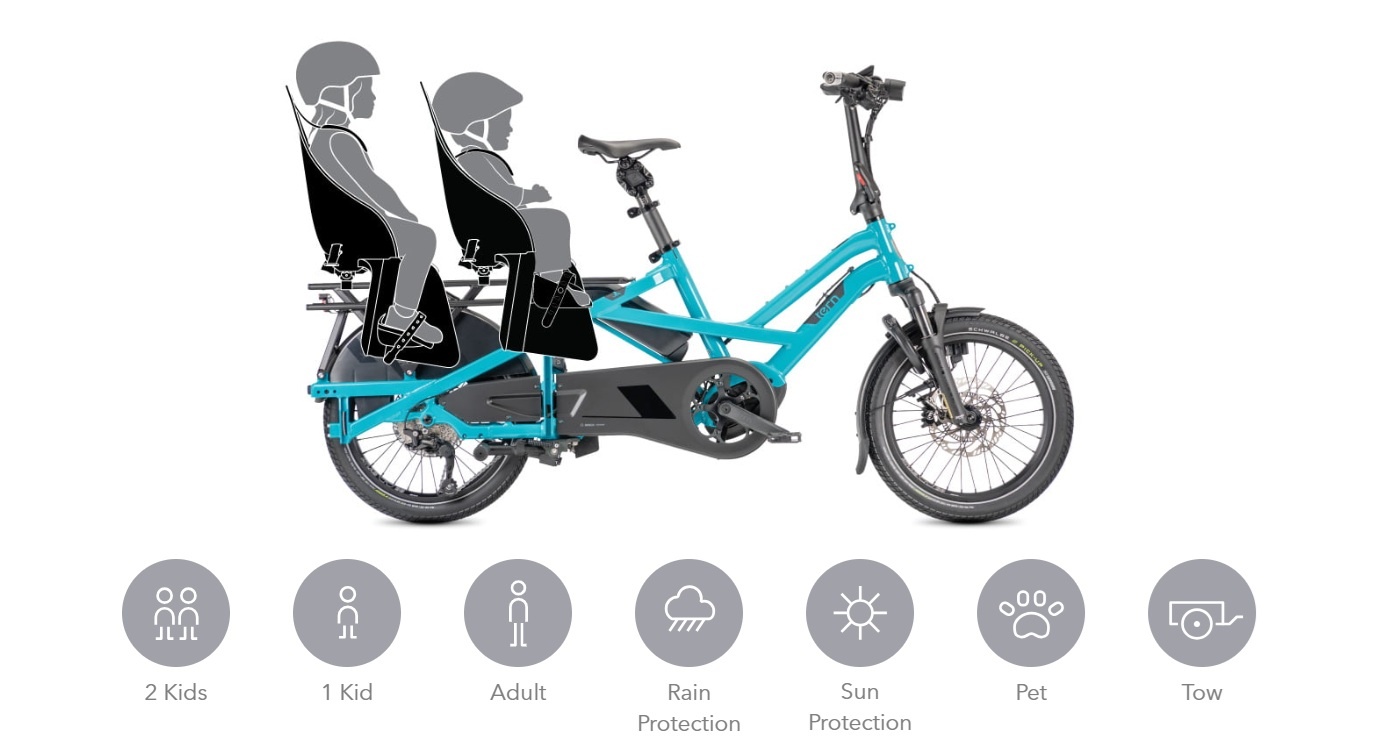

The new GSD takes the family electric cargo bike to a whole ‘nother level. Smarter than ever and packing even more muscle with a re-engineered frame that handles a max gross vehicle weight of 210 kg (463 lb), it’ll help you carry 2 loved ones and weekly grocery hauls with newfound ease—but it’s similar in length to a regular bike to remain surprisingly manageable.
Specifications
General properties

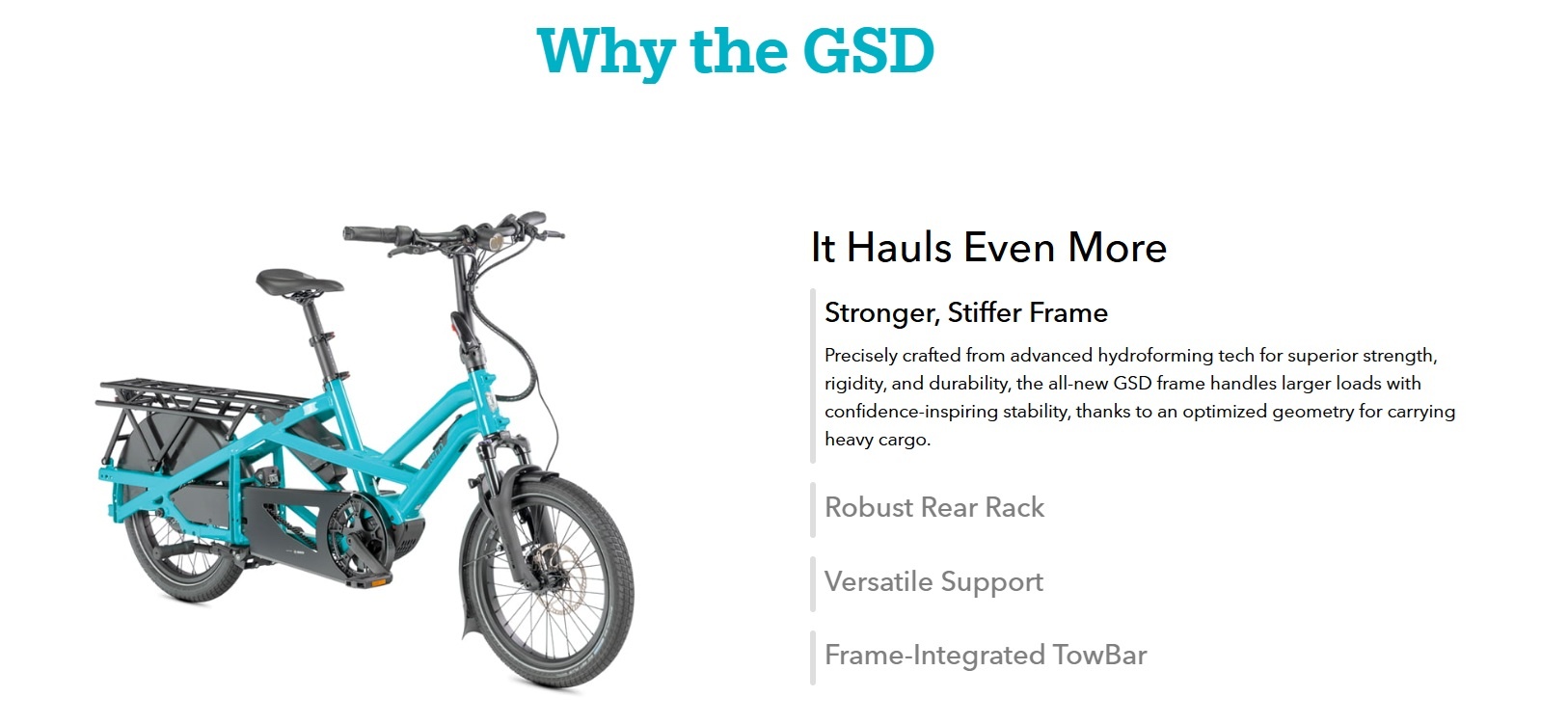

| Frame: | Tern GSD, 6061-AL, patented MultiTruss design, DIN 79010 certified: 210 kg |

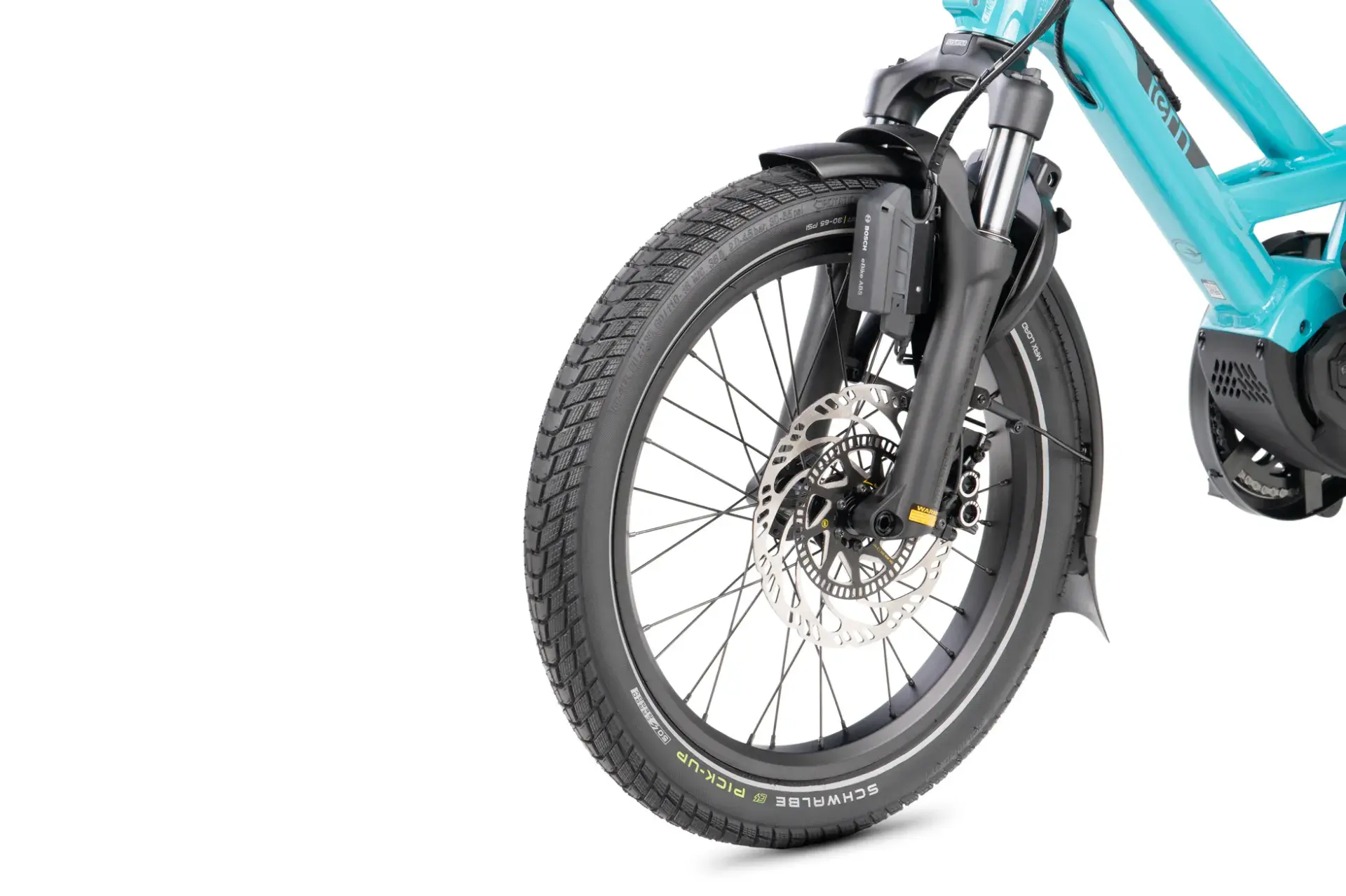

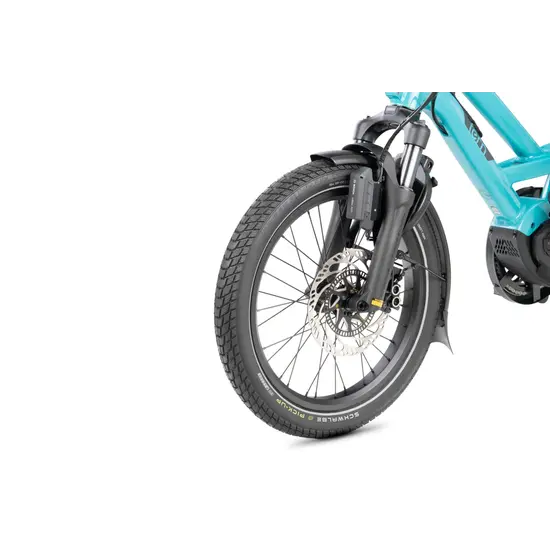

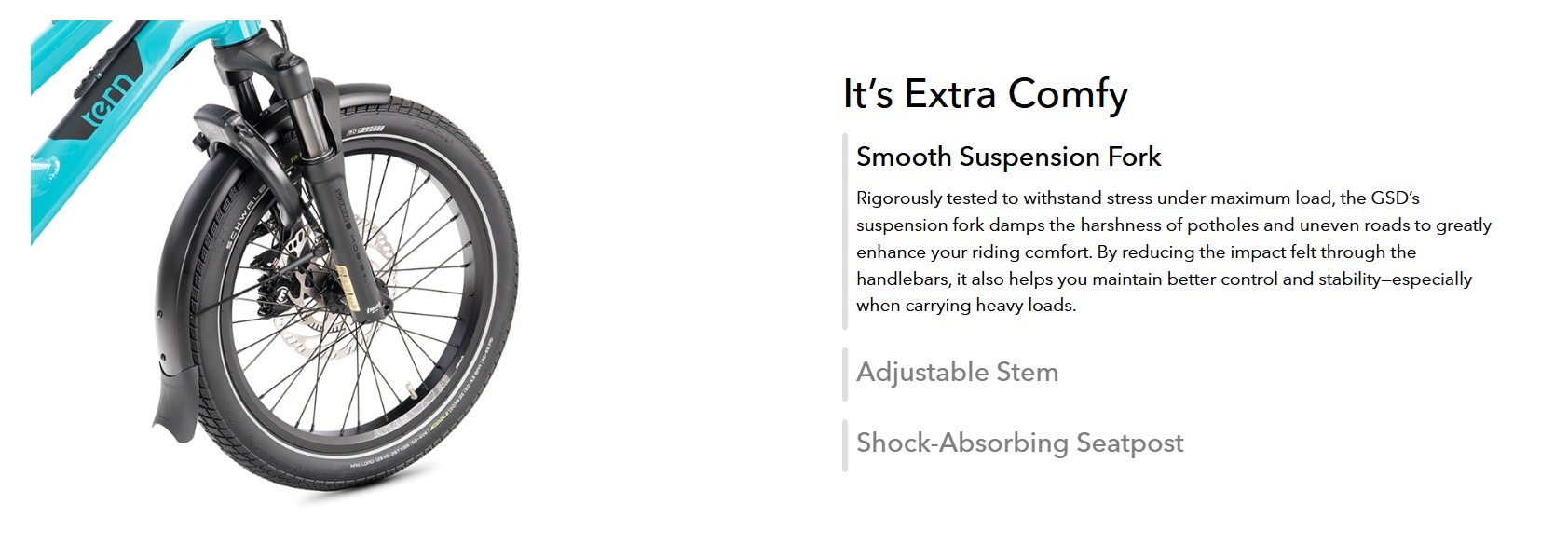

| Fork: | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 34 mm stanchions, Thru-axle, DIN 79010 certified: 210 kg |
| Motor: | Bosch Cargo Line, 400% Assist, 85 Nm Torque, max speed 25 kph (EU) |
| Speed - Torque: | 15.5mph - 85Nm |

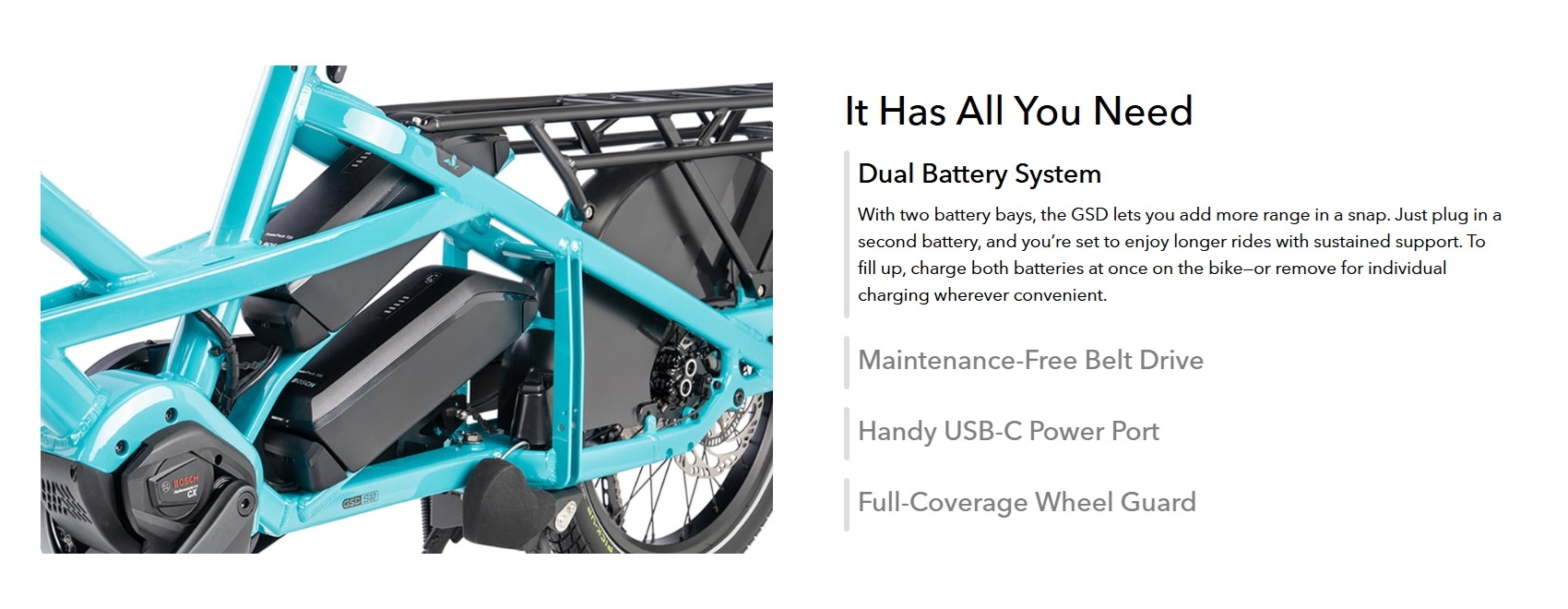

| Battery: | Bosch 545 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 800 Wh max capacity |
| Range: | 545 Wh: 45-98 km (28-61 mi); 1090 Wh: 90-196 km (56-122 mi) |
| Charger: | 220V, 4A (EU) |

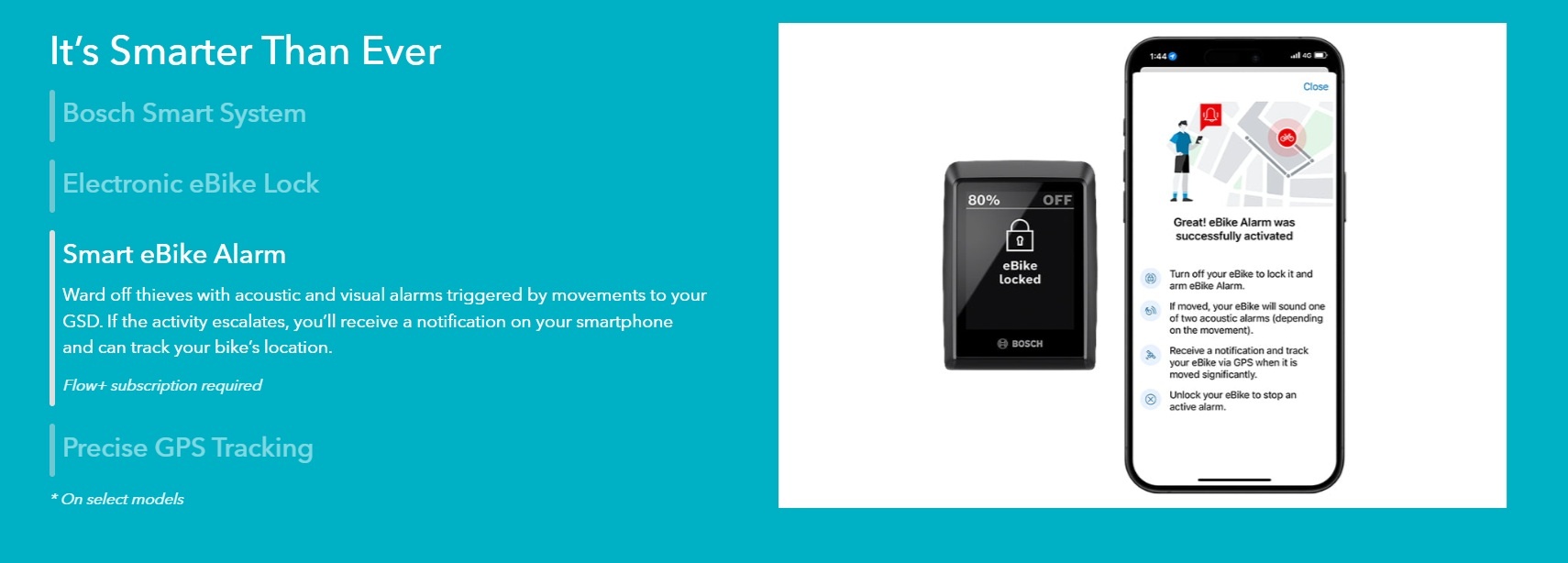

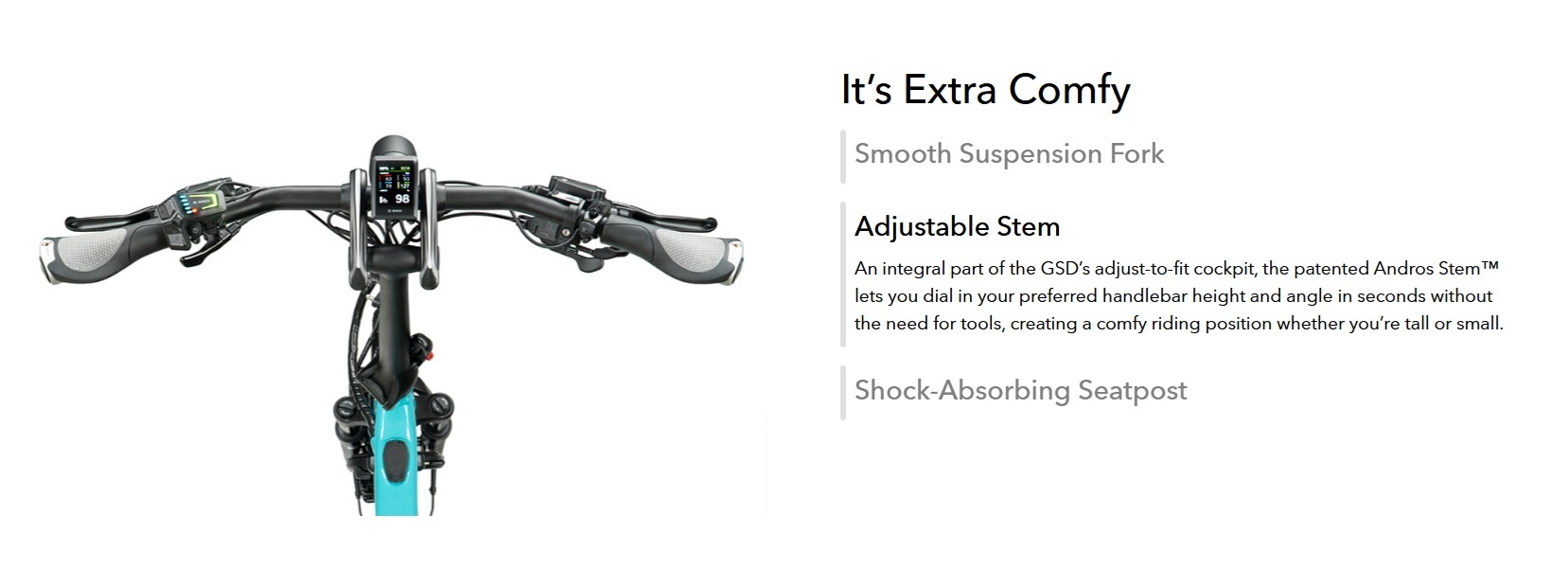

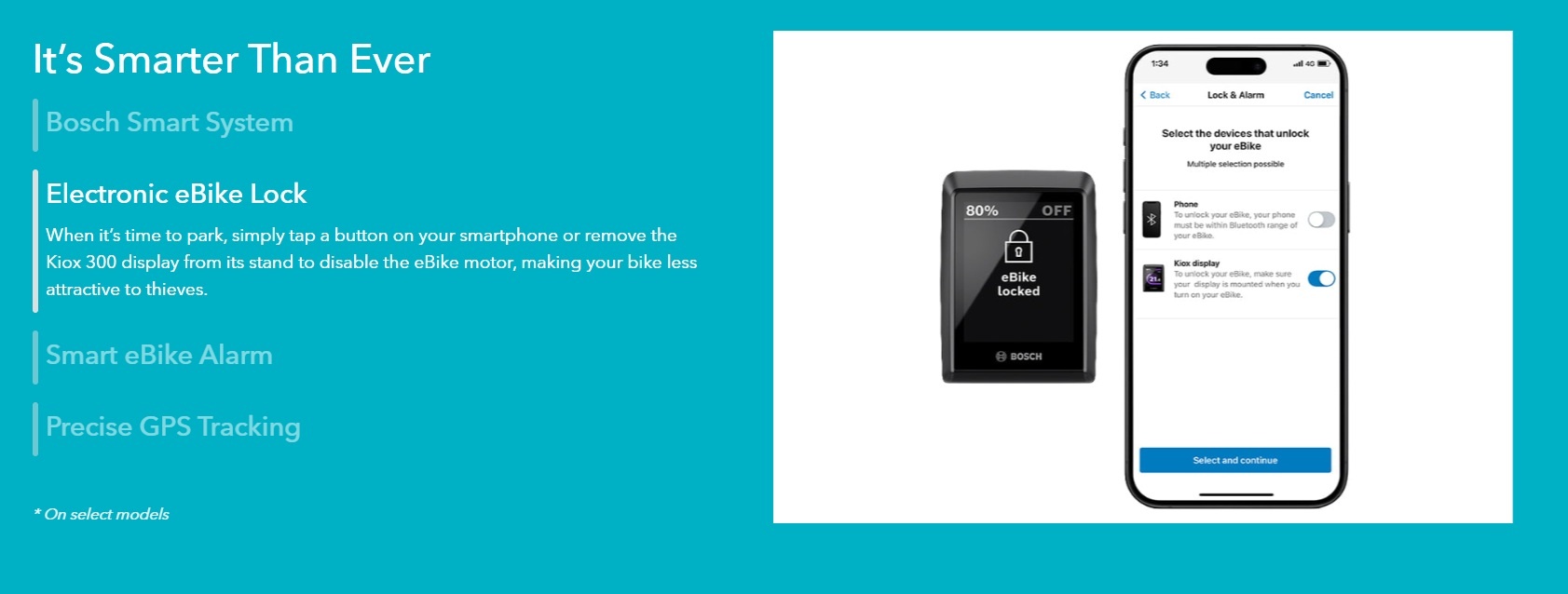

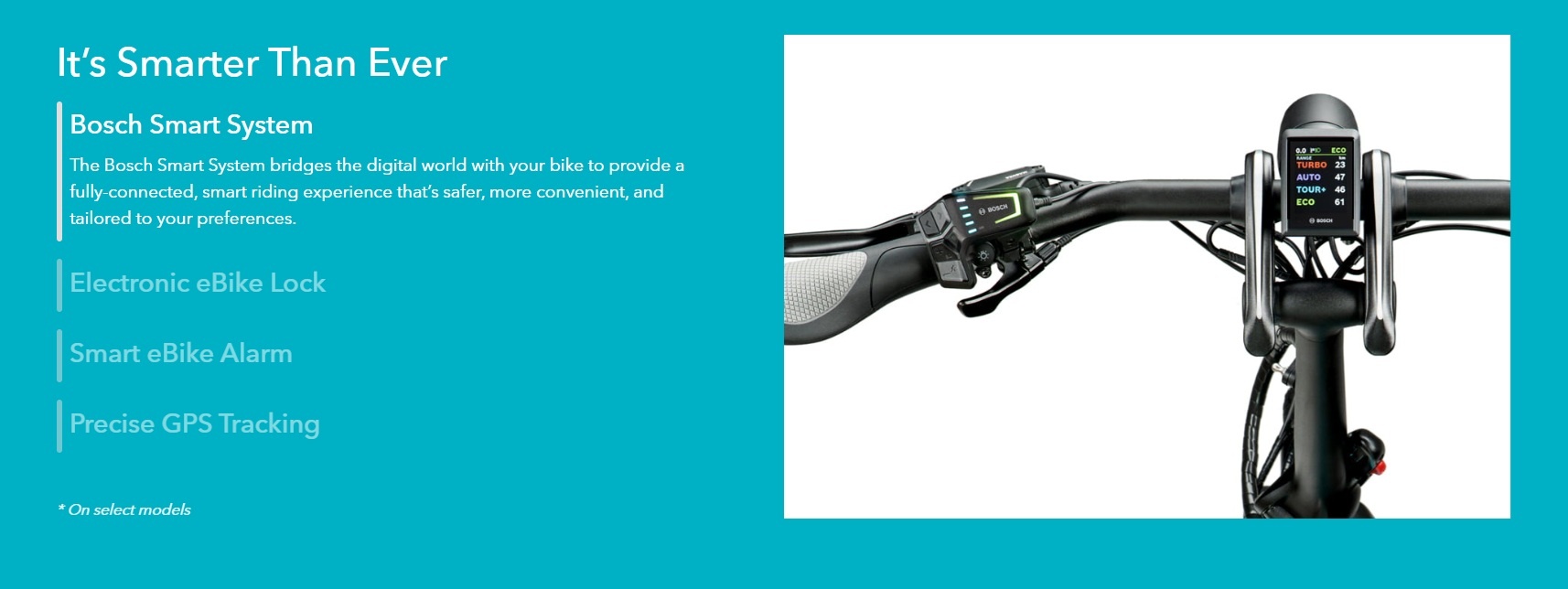

| Display: | Bosch Kiox 300 w/ LED remote, connectivity with Bosch eBike Flow IOS/Smartphone app, electronic bike lock |

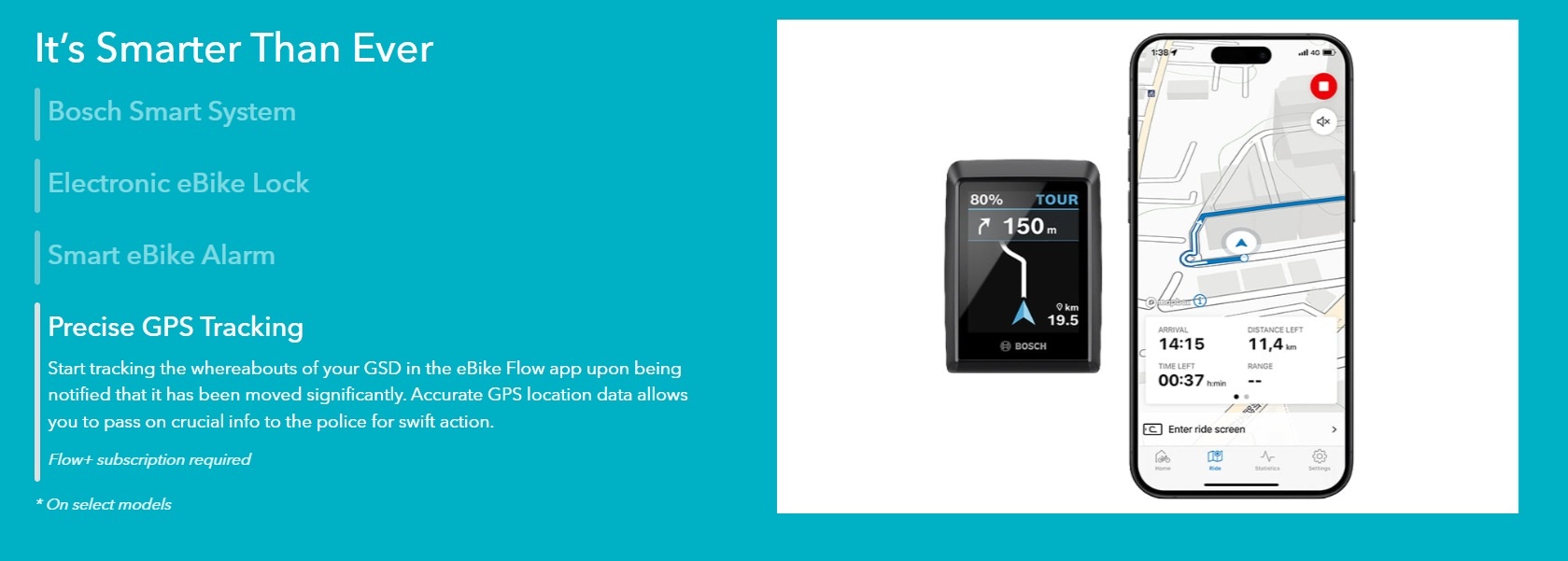

| Connect Module: | Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation |

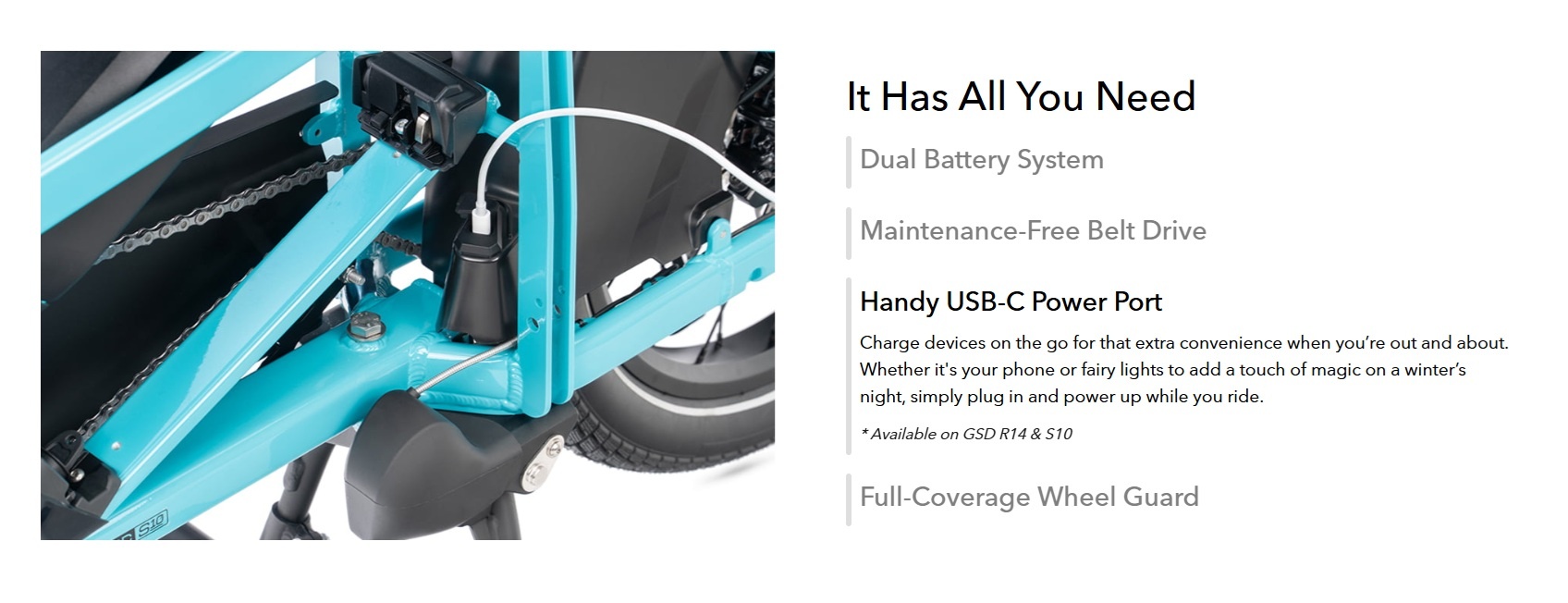

| On Board Charging: | USB-C, 5V/2.4A, 12W max |
| Transmission Shifter: | Shimano Deore, 1 x 10 spd |
| Cassette - Freewheel: | Shimano 11-42T, 10 spd |
| Chain: | KMC 10 spd, for eBike, EPT corrosion resistant coating |

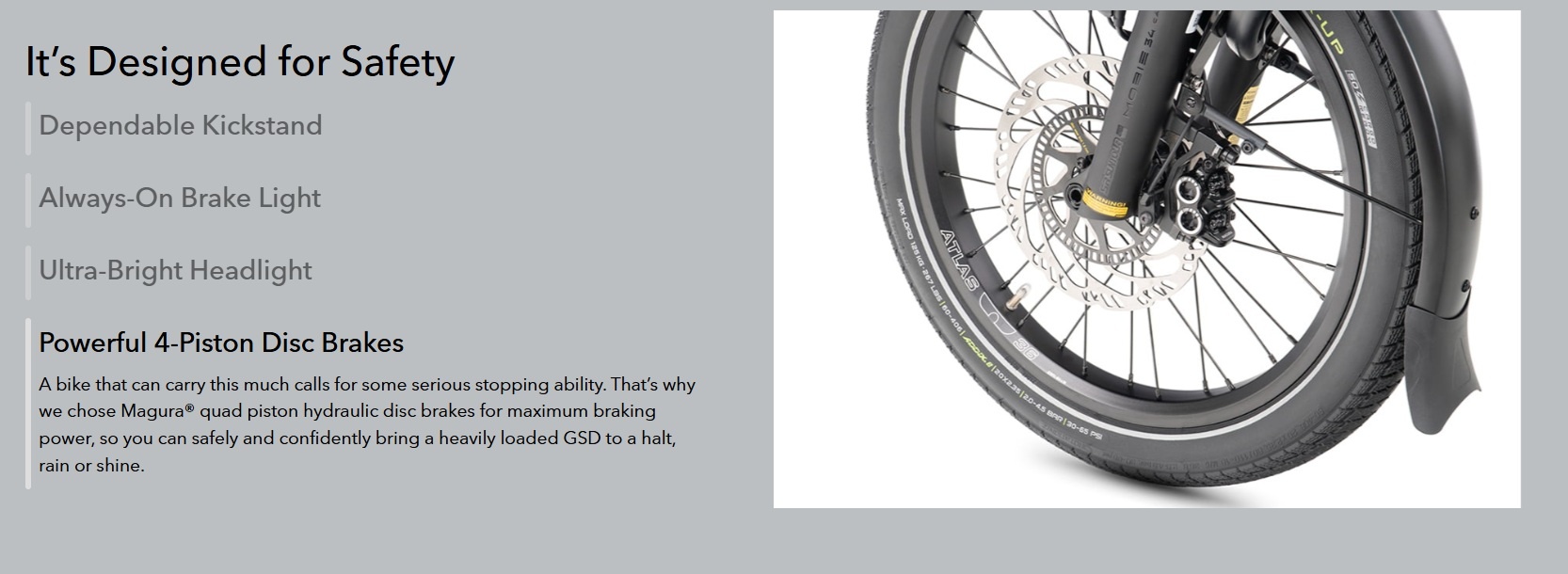

| Brakes: | Magura MT-C ABS, 4-piston hydraulic disc, 203 mm rotor |

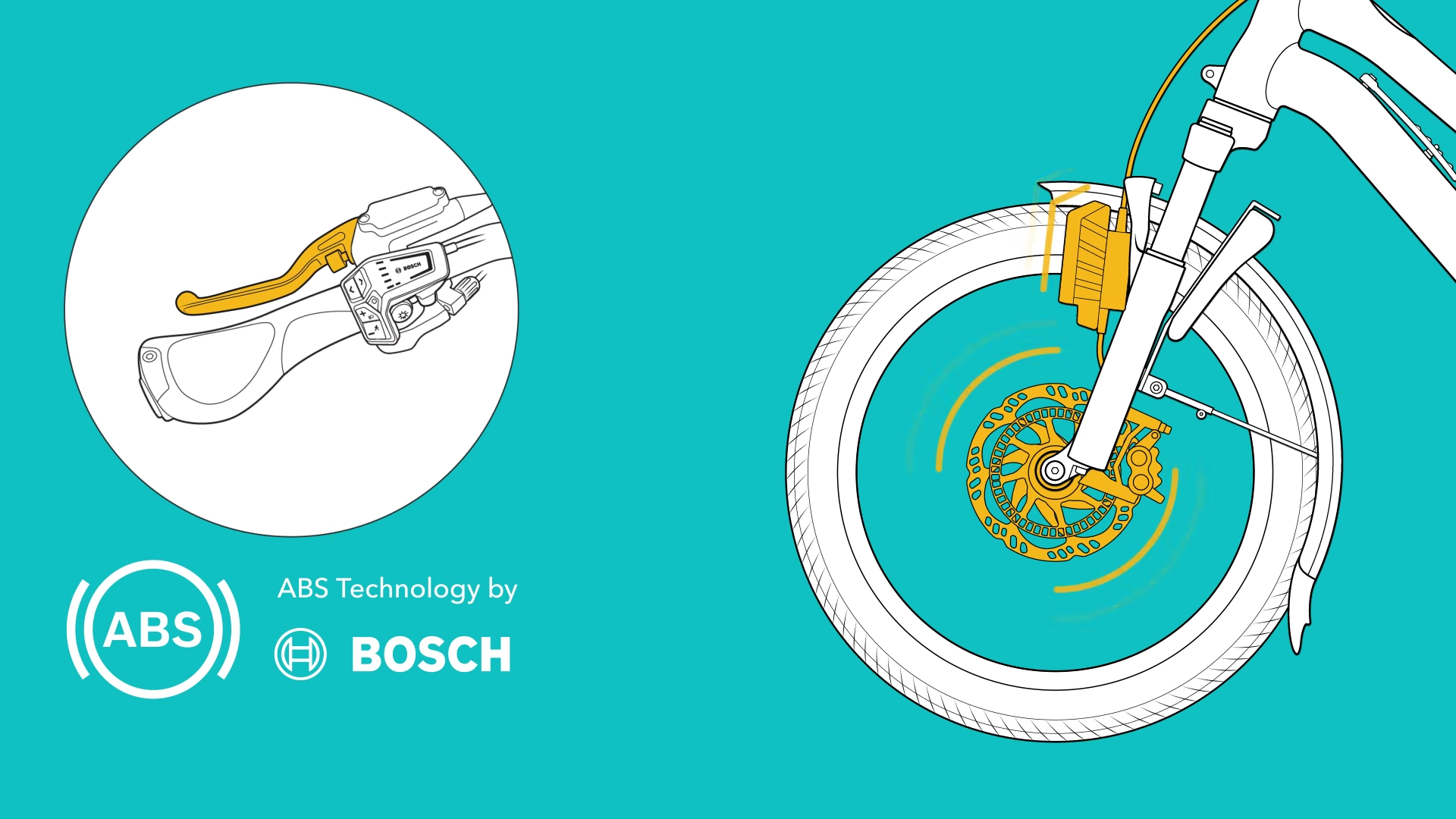

| Anti-Locking Braking System (ABS): | Bosch Anti-Lock Braking System, Gen 2 |
| Front Hub: | Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings |
| Rear Hub: | Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard |
| Rims: | Tern Atlas, ultra wide 36 mm, dual reinforced joint |
| Tyres: | Schwalbe Pick-Up, cargo-optimized, Super Defense puncture protection, Reflex |

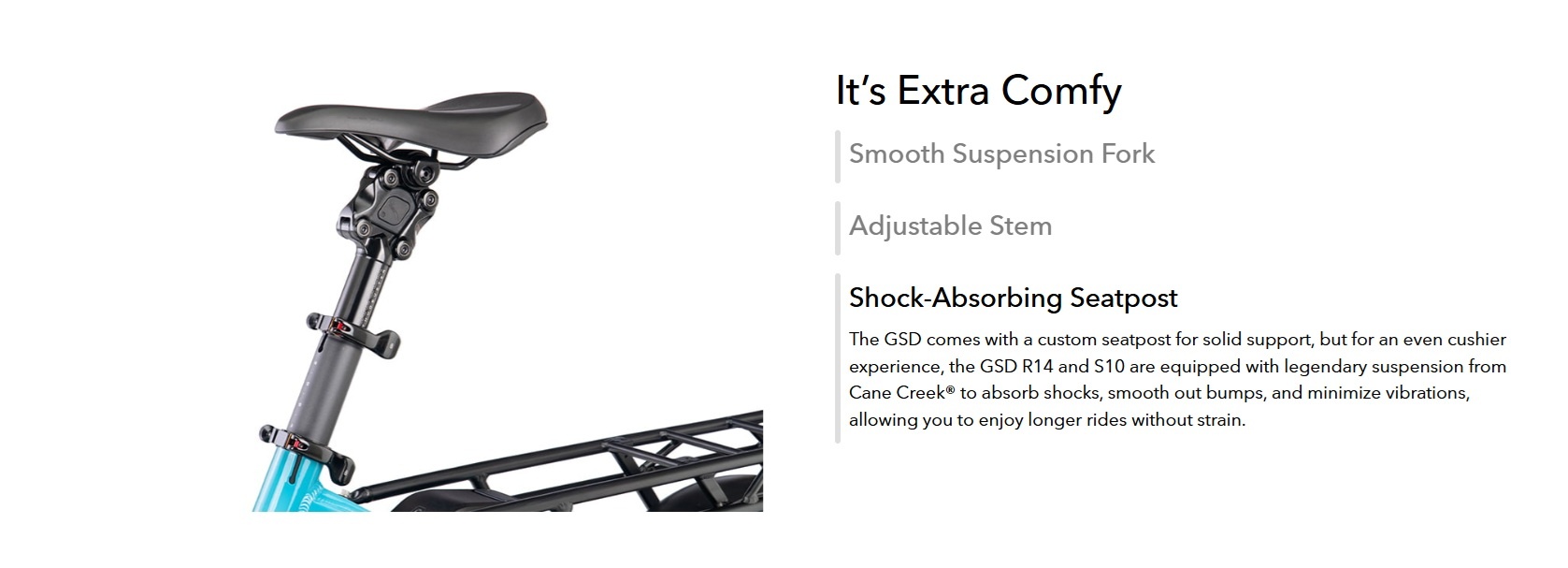

| Seatpost: | Tern VLT (Very Large Telescope) with Cane Creek suspension and LightAction levers |
| Saddle: | Tern GSD by Velo |

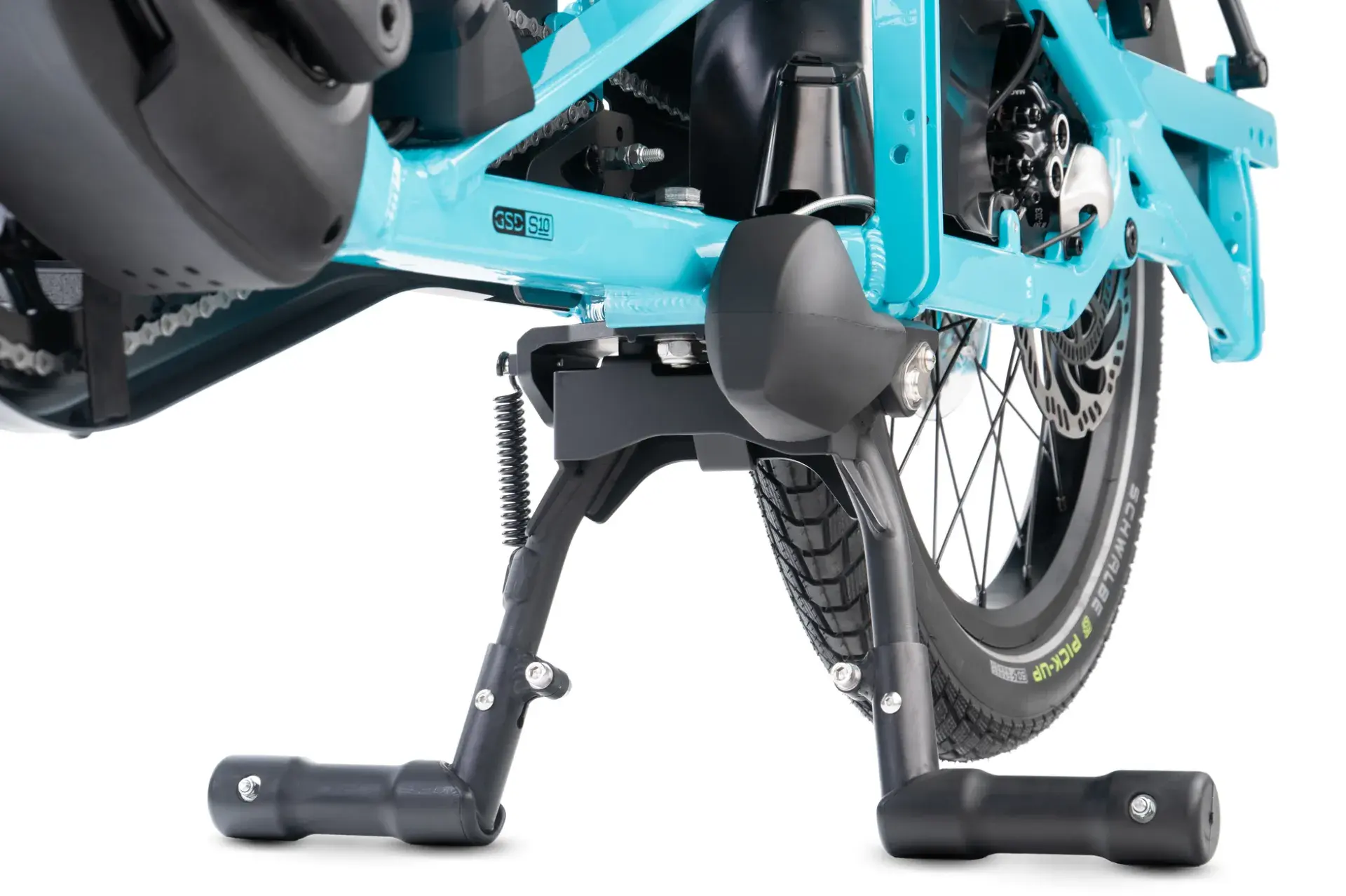

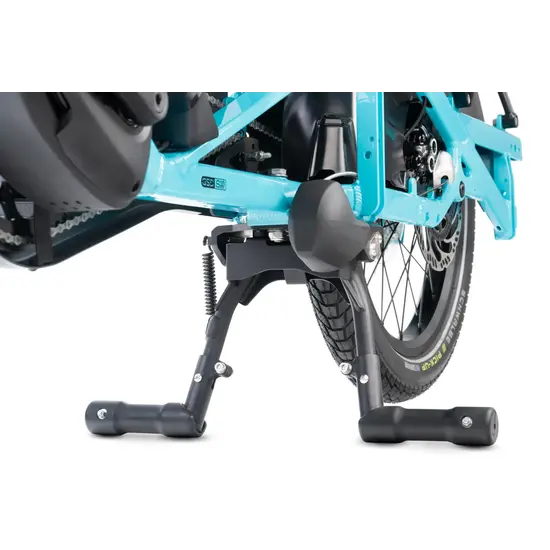

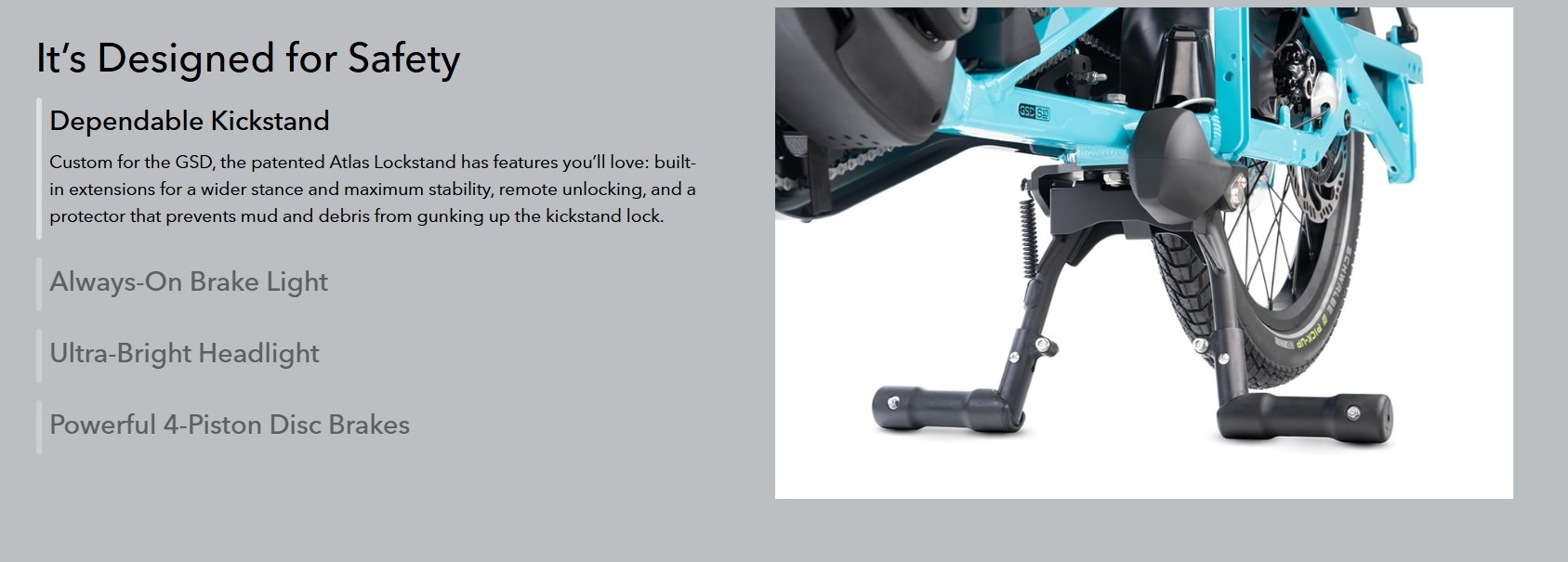

| Kickstand: | Atlas Lockstand Gen 2, AutoLock w/ remote unlock, patented technology |

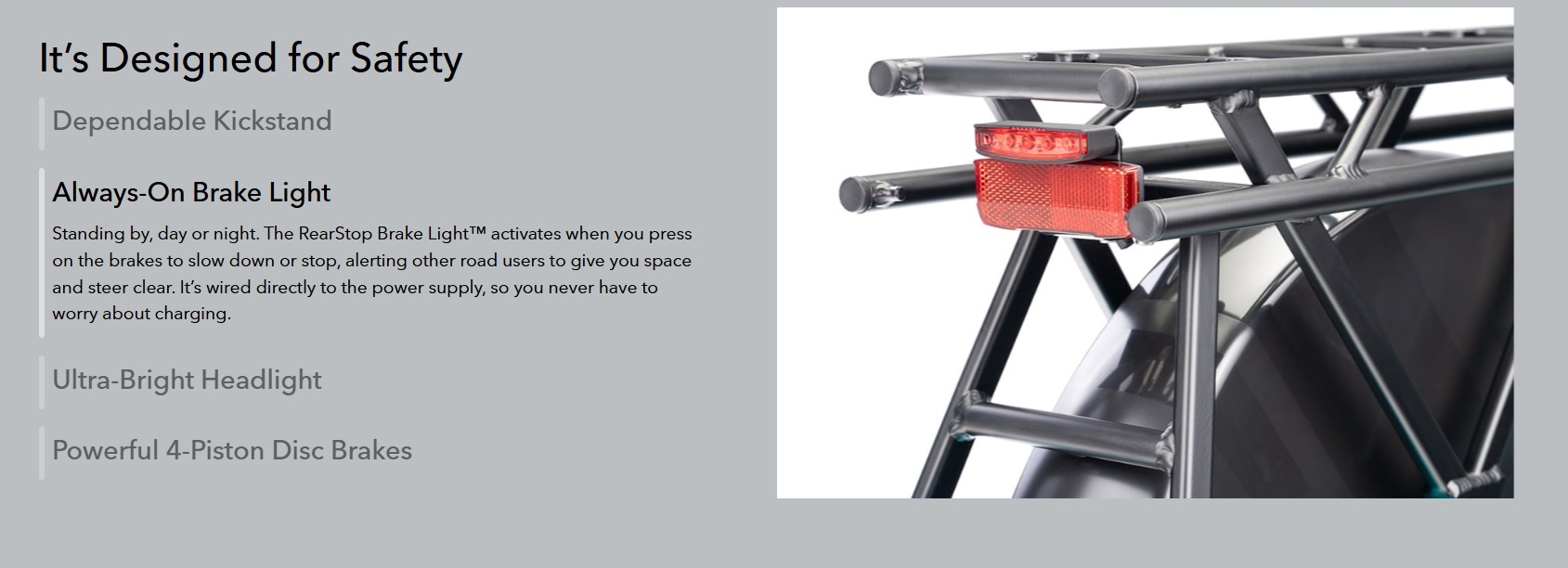

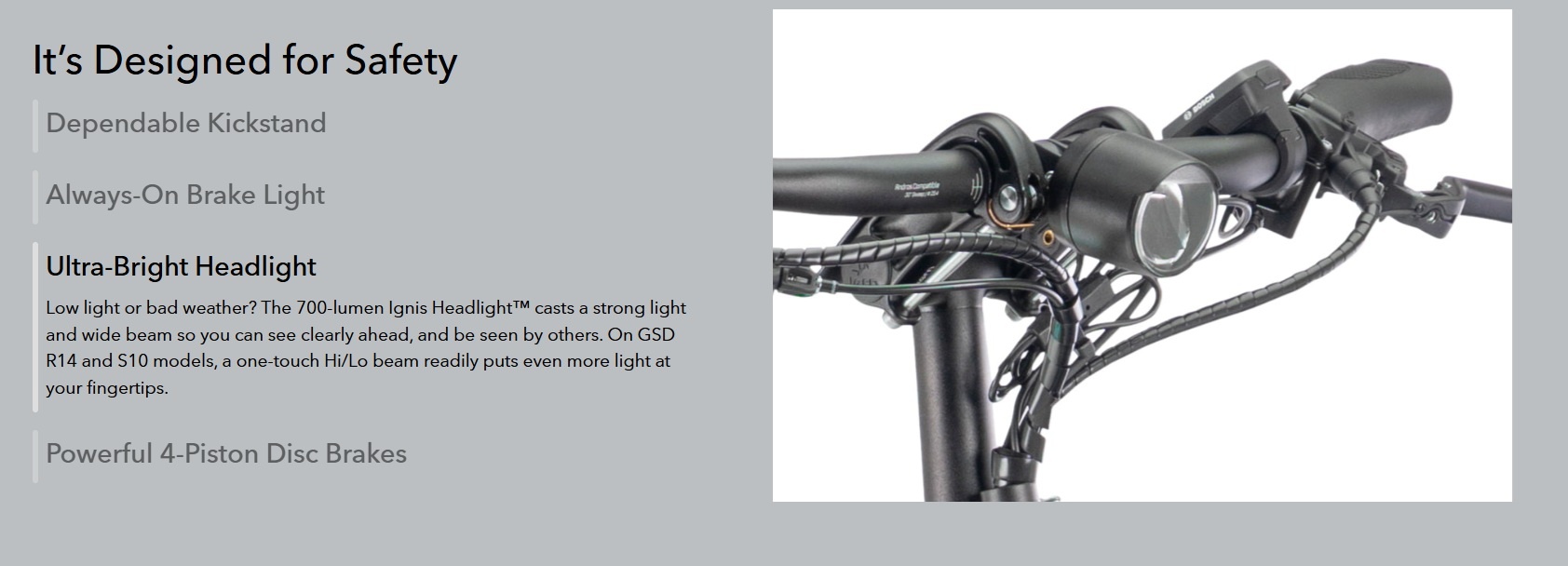

| Lights - Front - Rear: | Ignis Headlight, Hi/Lo beams, 700 lumens - RearStop Brake Light, Always on |

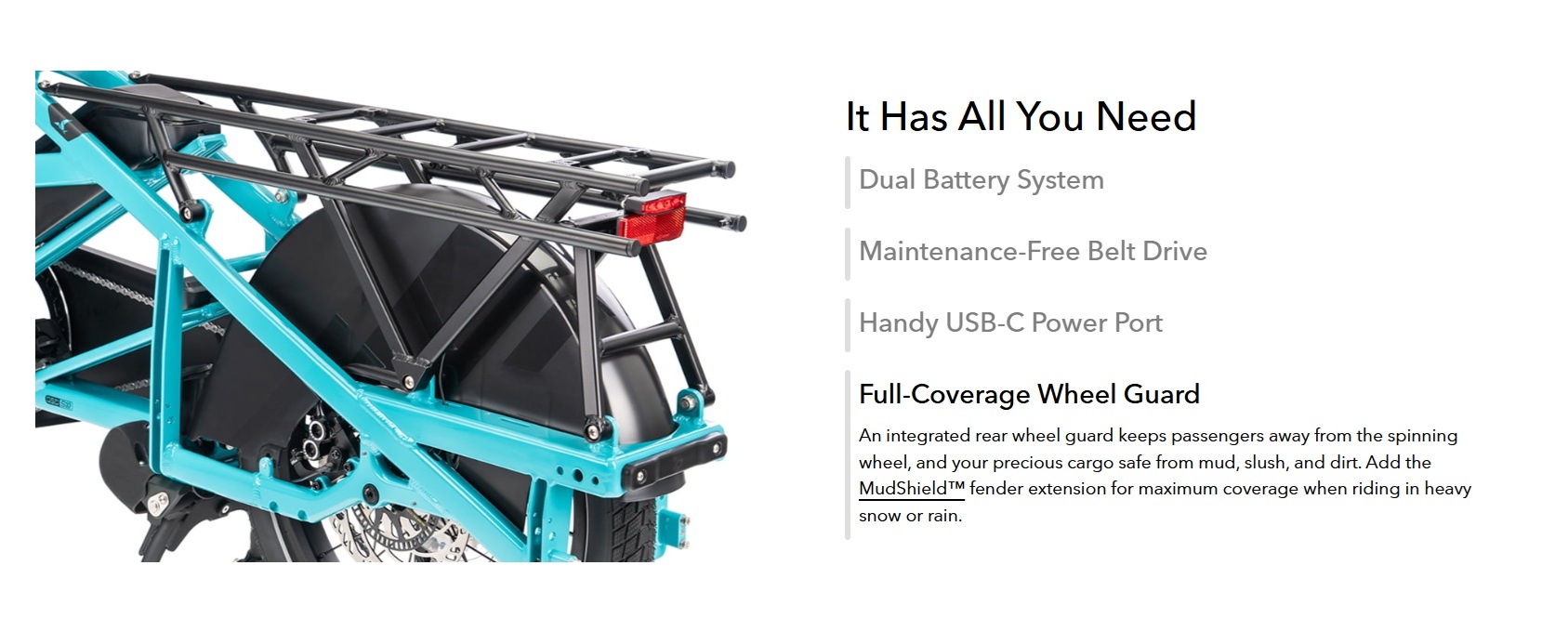

| Fenders: | F: Aluminium R: GSD wheel guard |
| Lock: | ABUS or AXA, keyed-alike with Bosch battery |
| Weight: | 37.32 kg |
| Max Gross Vehicle Weight: | 210 kg (463 lb) |

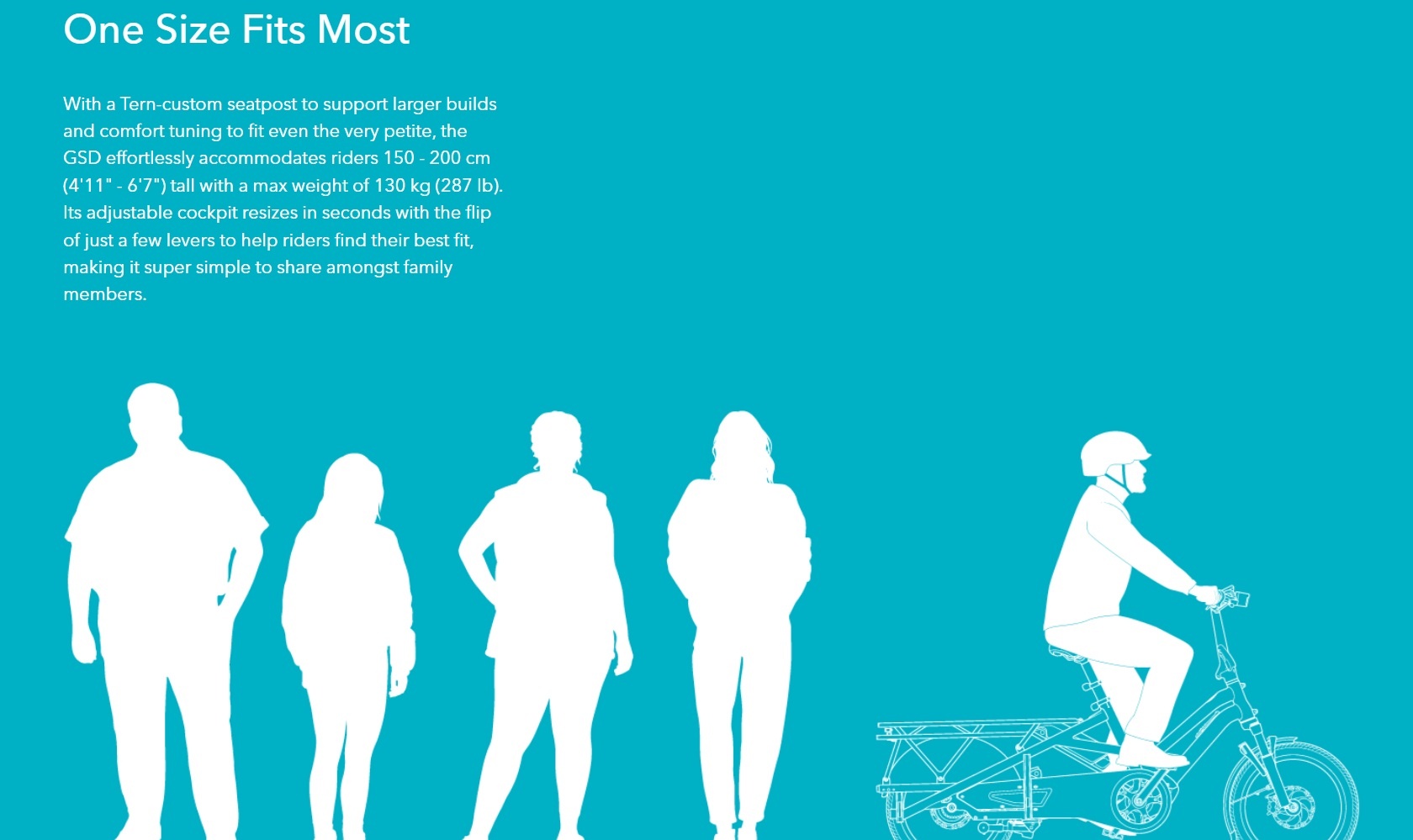

| Max Rider Weight: | 130 kg |
| Folding Size: | 185 × 46 × 88 cm |
| Colours: | Olive Green, Pearl White, School Bus Yellow, Satin Midnight Blue |
