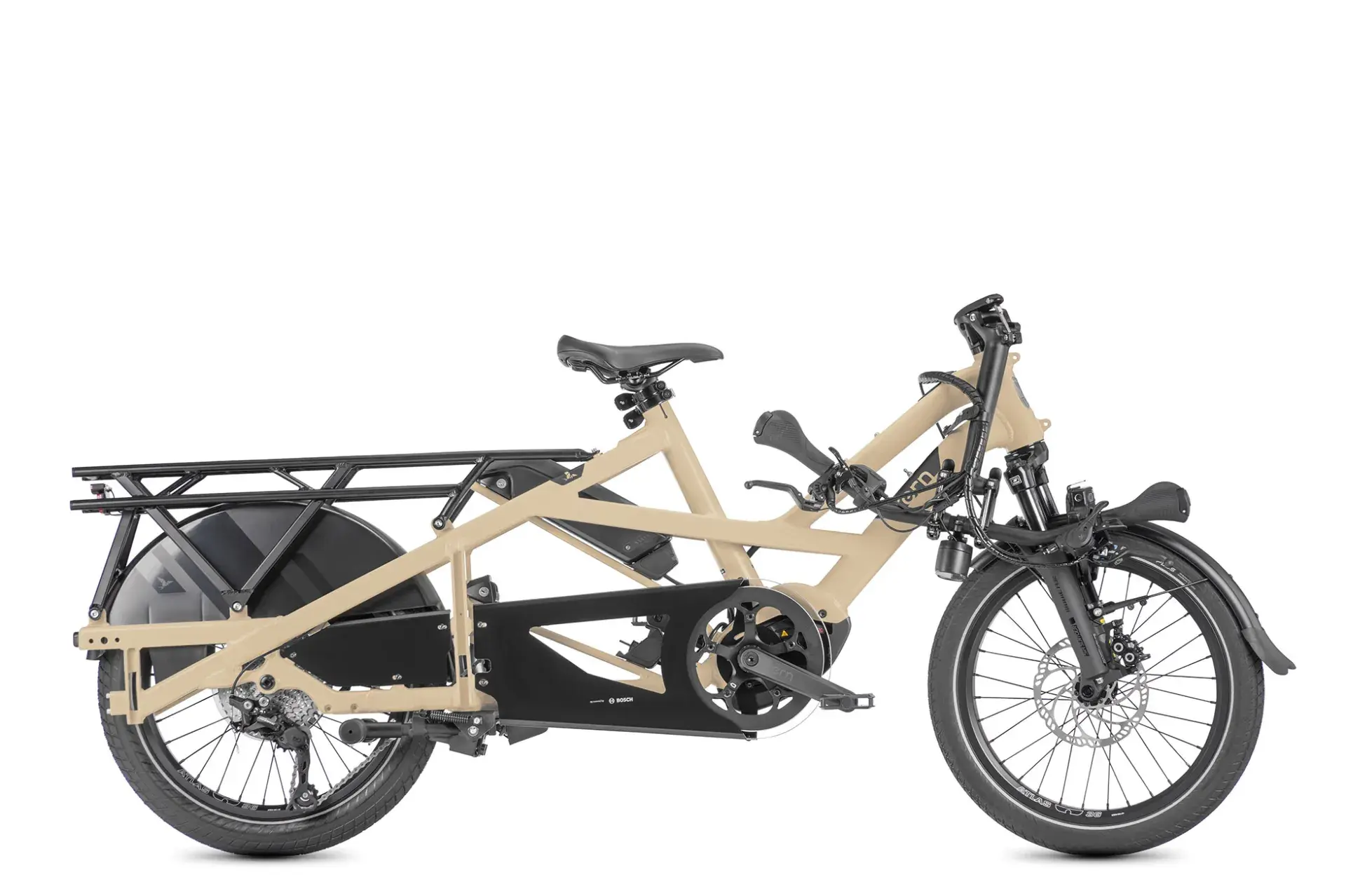

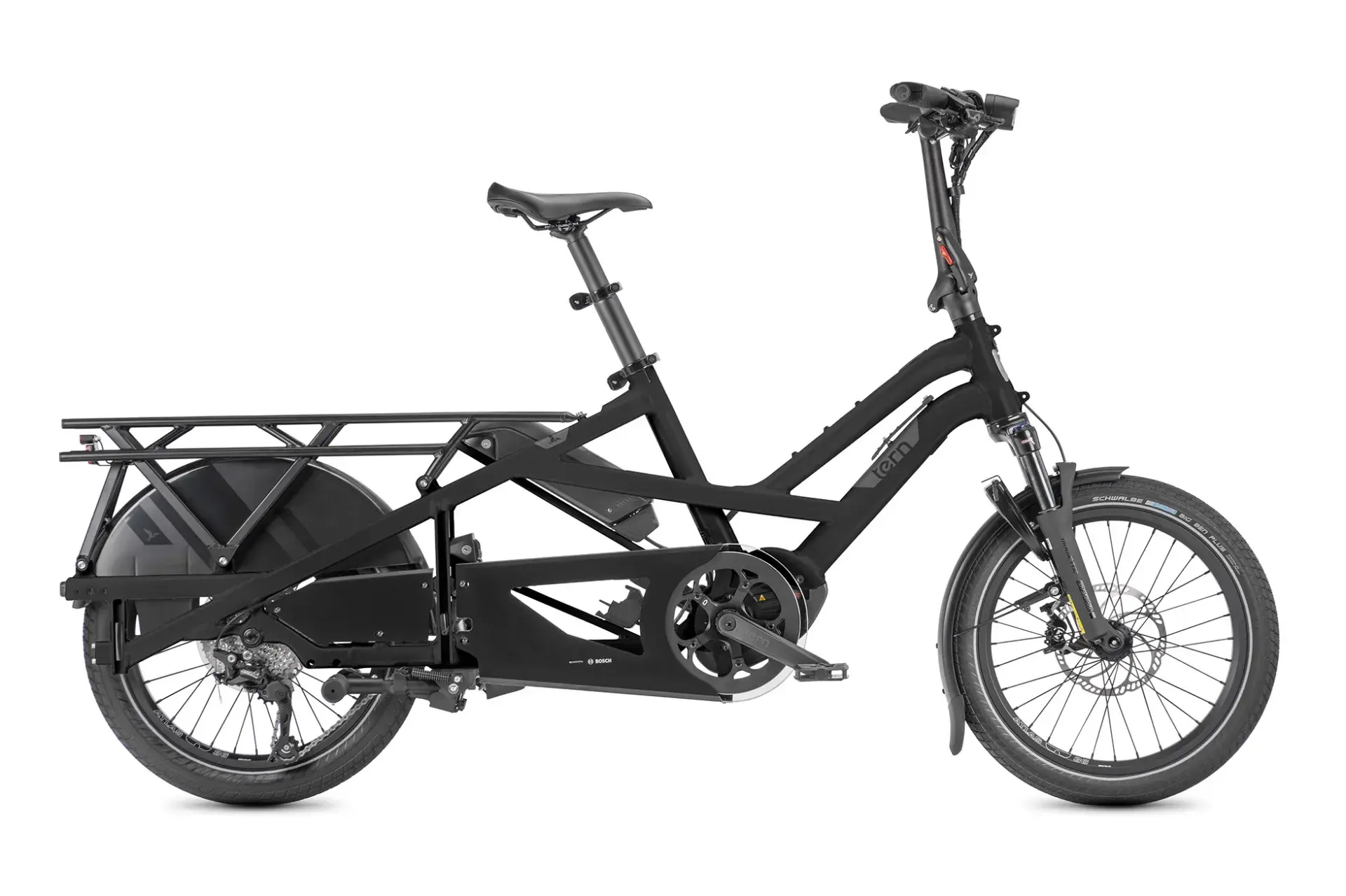

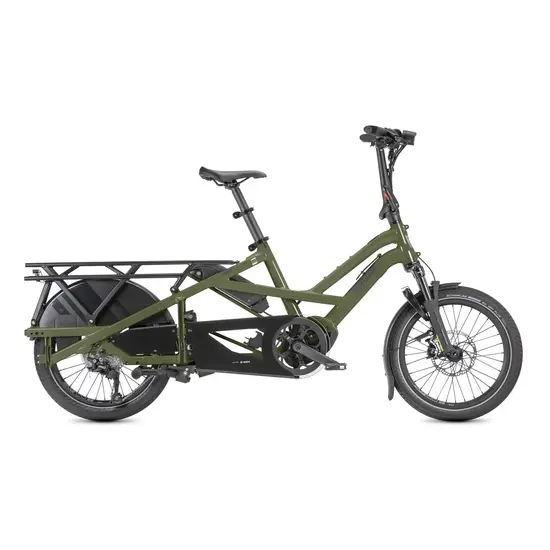

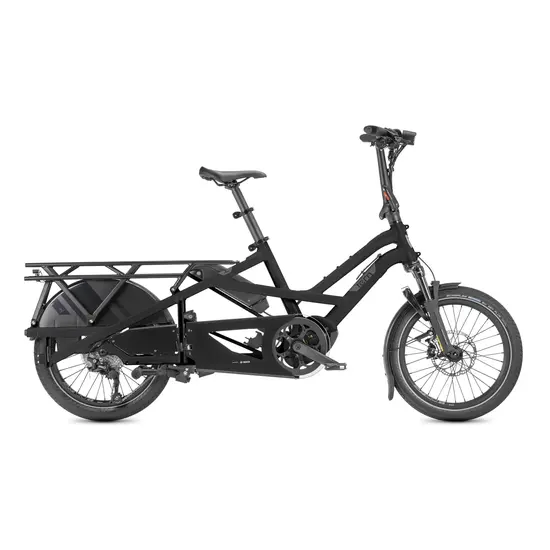

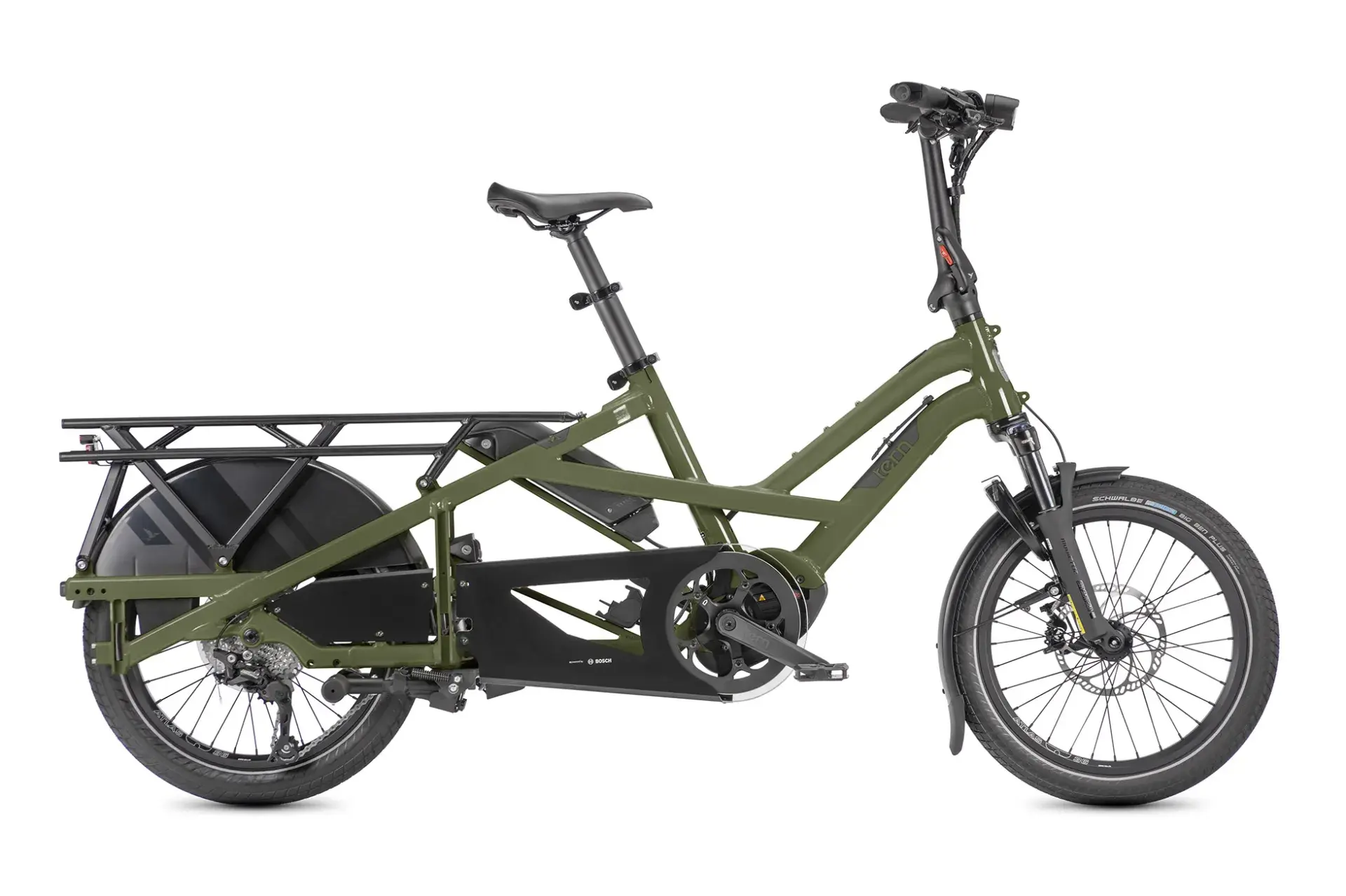

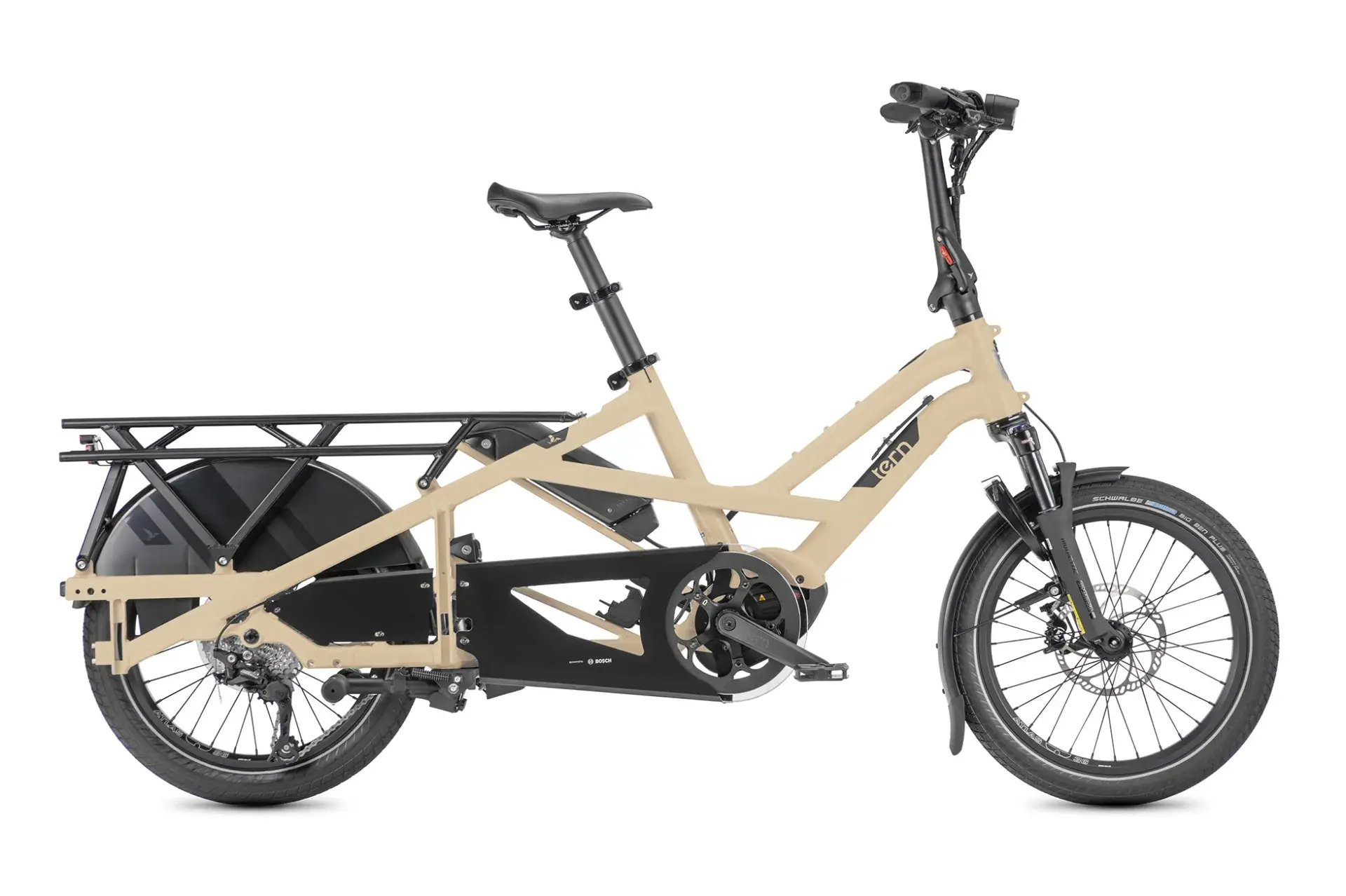

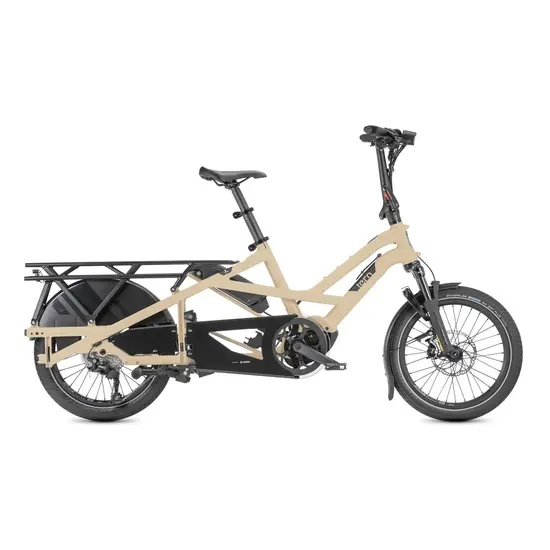

Tern E-Cargo Bike - GSD P10 - Gen 3
£4,700.00
Description
What makes it a P10?
- User-friendly Bosch® e-bike system with Purion display helps you stay informed and in control on the road
- Dual-battery compatible, ready to power through heavy use and long distances of up to 207 km (129 mi)
- Shimano® Deore 1 x 10-speed hub for smooth, efficient shifting
GSD Highlights

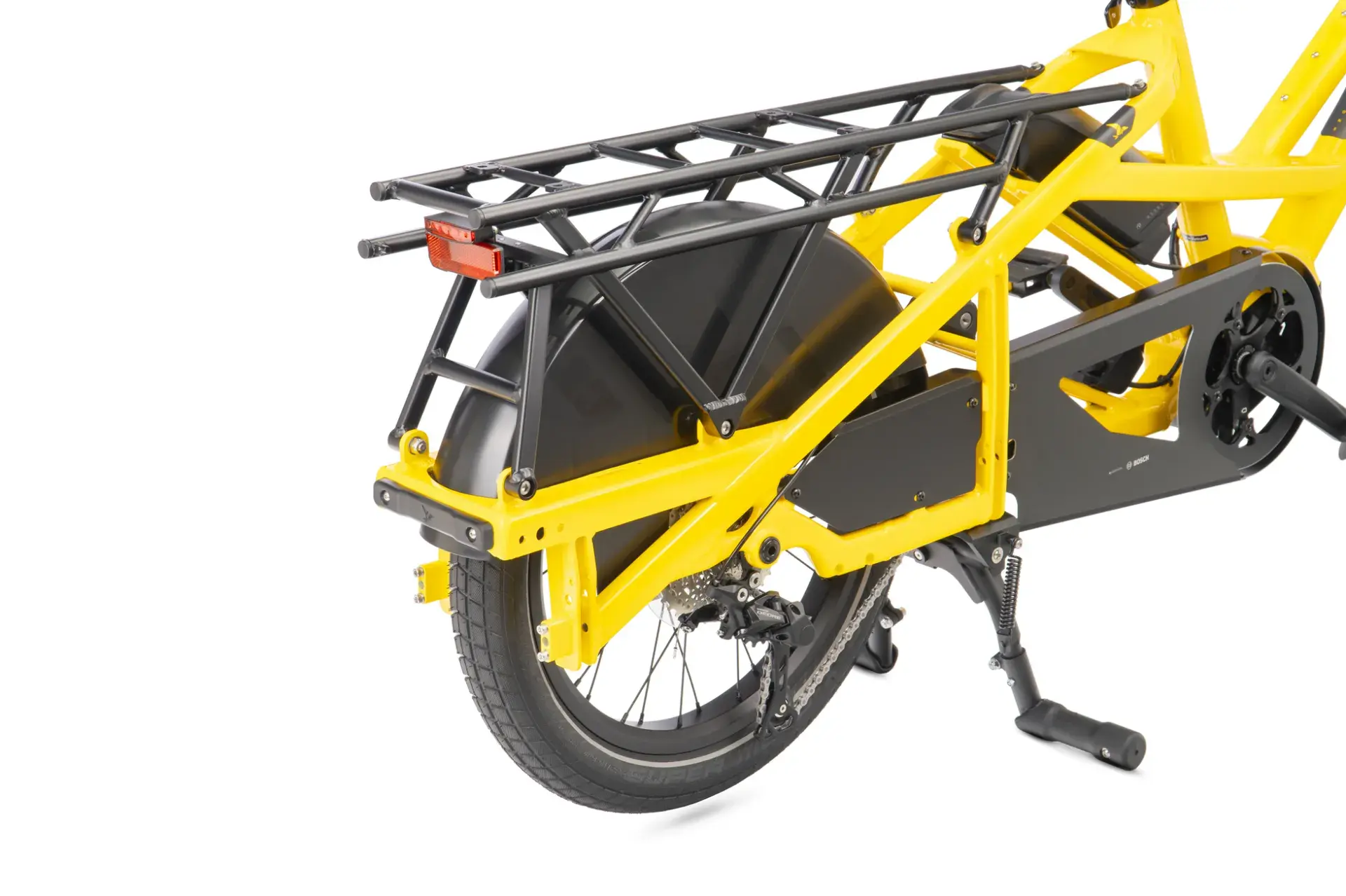

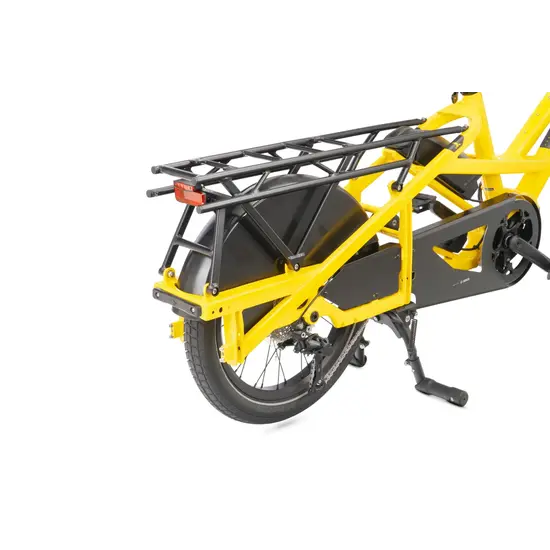

- Best-in-class hauling capacity, rated to a maximum gross vehicle weight of 210 kg (463 lb) with a rear rack load capacity of 100 kg (220 lb)
- Powerful Bosch Cargo Line motor provides up to 85 Nm of torque and 400% support
- Magura® 4-piston hydraulic disc brakes deliver precise and responsive stopping power
- Robust, locking dual-leg kickstand with remote unlock and integrated foot extensions for maximum loading stability
- Easy-sharing cockpit adjusts without tools to fit riders 150 - 200 cm (4'11" - 6'7") tall and weighing up to 130 kg (287 lb)
- UL 2849-certified e-bike system & third-party tested to meet German cargo bike standard DIN 79010 for superior safety and reliability
Specifications
General properties
| Frame: | Tern GSD, 6061-AL, patented MultiTruss design, EFBE Tri-Test approved: 200 kg |

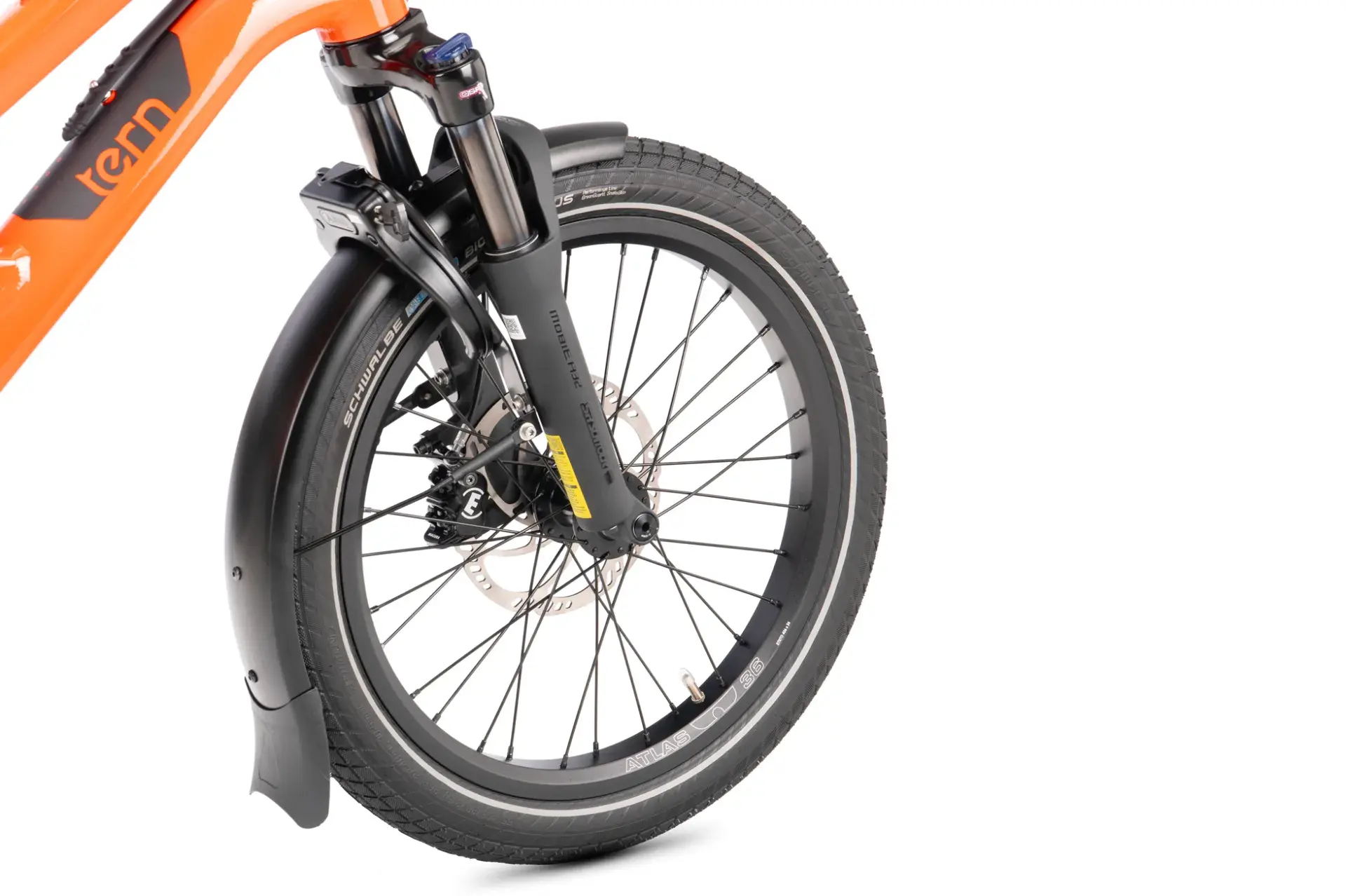

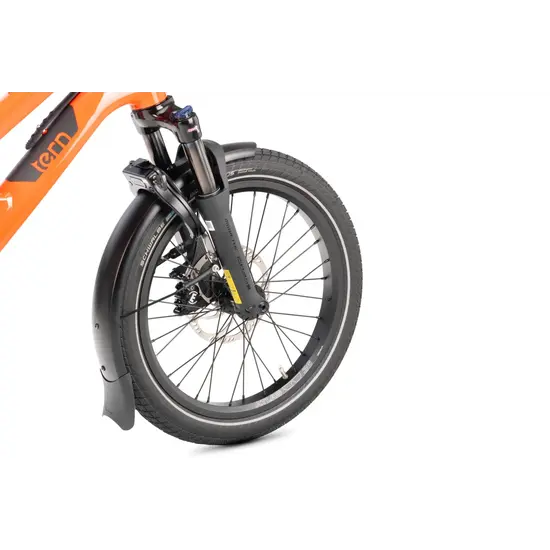

| Fork: | Suntour custom for Tern, 1.5" tapered Chromoly steerer, 32 mm stanchions, Thru-axle, 70 mm travel, EFBE approved: 200 kg |

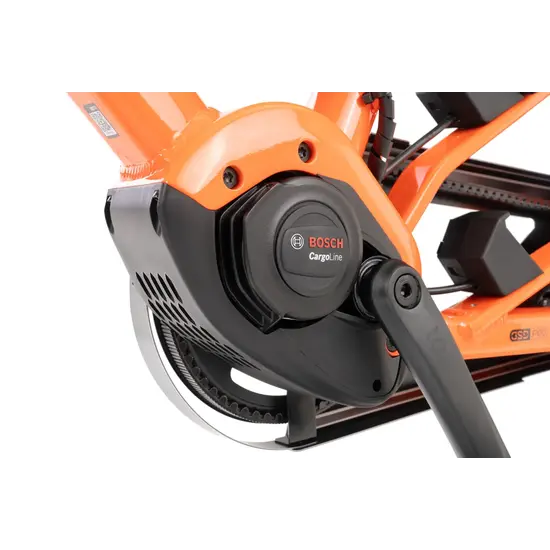

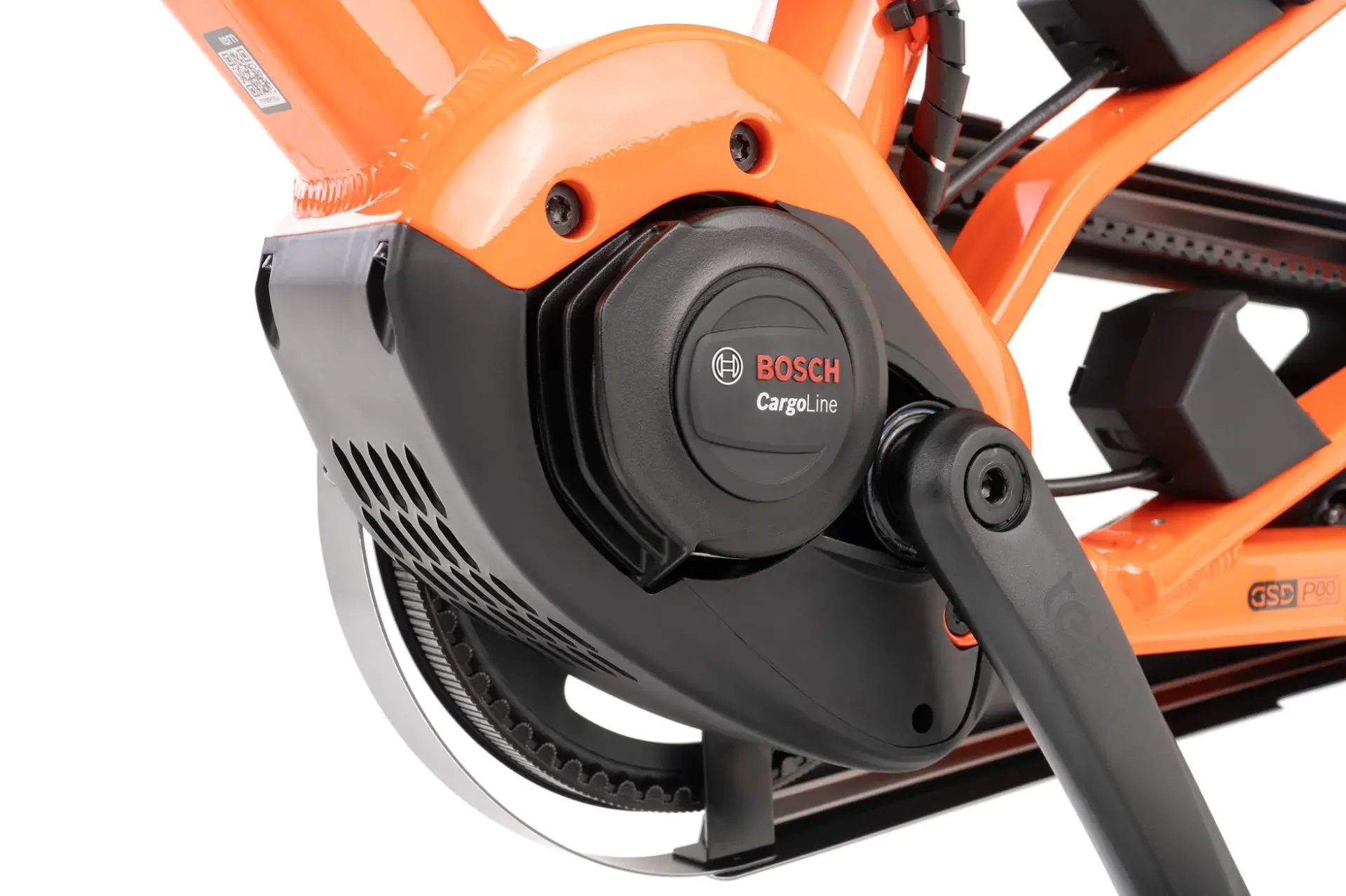

| Motor: | Bosch Cargo Line, 400% Assist |
| Speed - Torque: | 15.5mph - 85Nm |

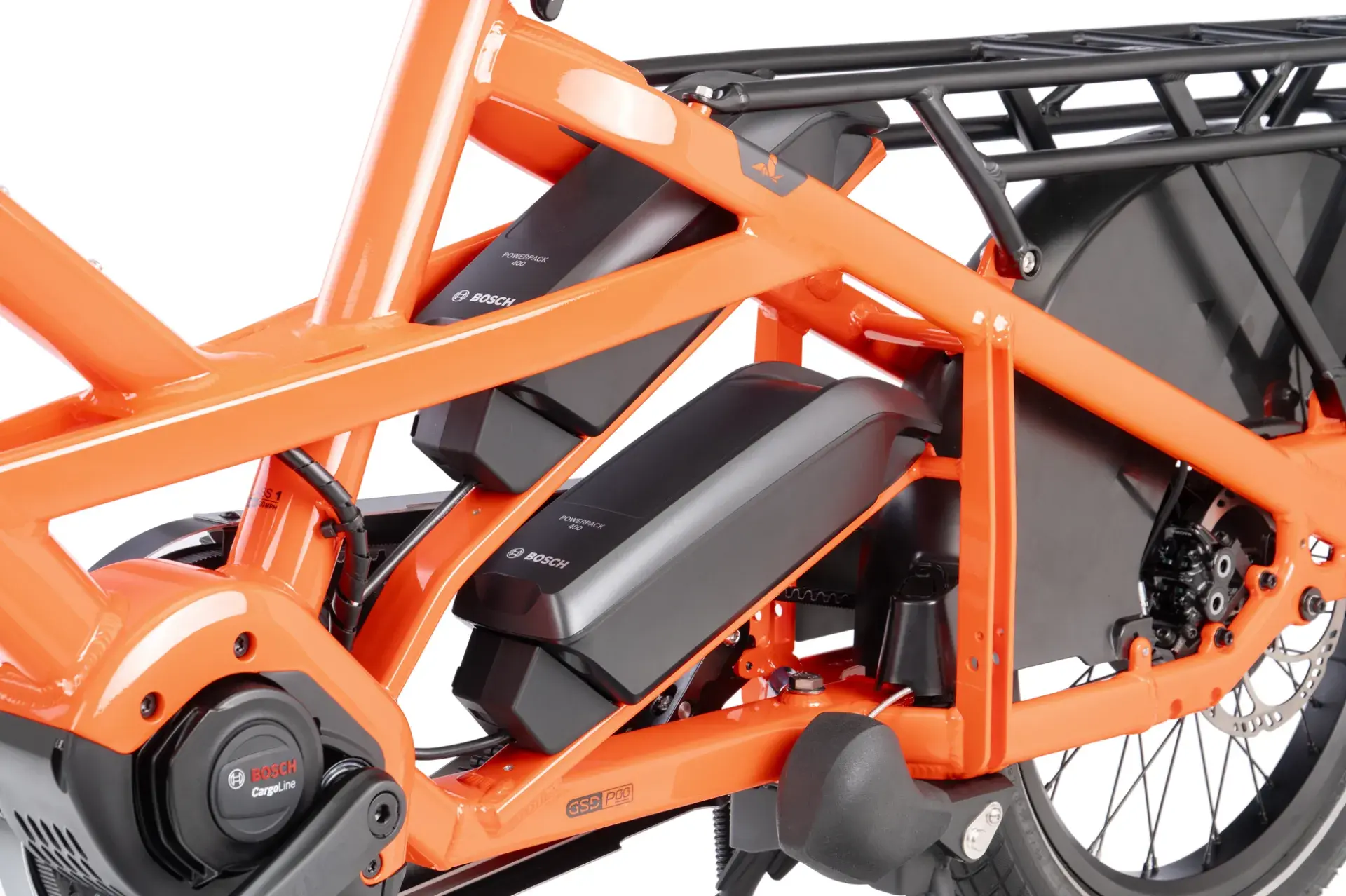

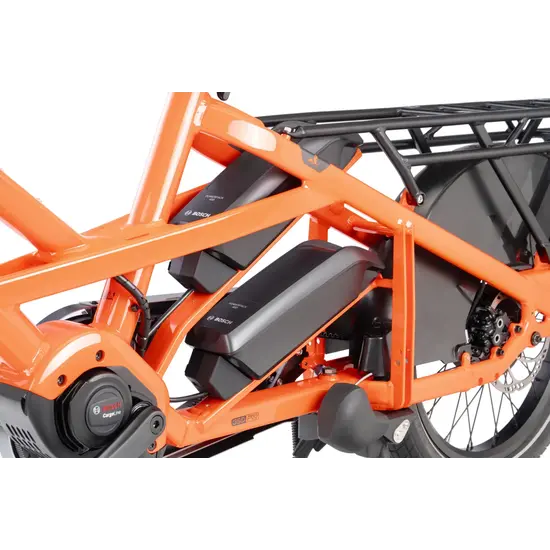

| Battery: | Bosch 500 PowerPack, Fast Swap, Dual Battery bays, optional 2 x 500 Wh max capacity |
| Range: | 500 Wh: 31-63 miles; 1000 Wh: 63-128 miles |
| Charger: | 220V, 4A (EU) |

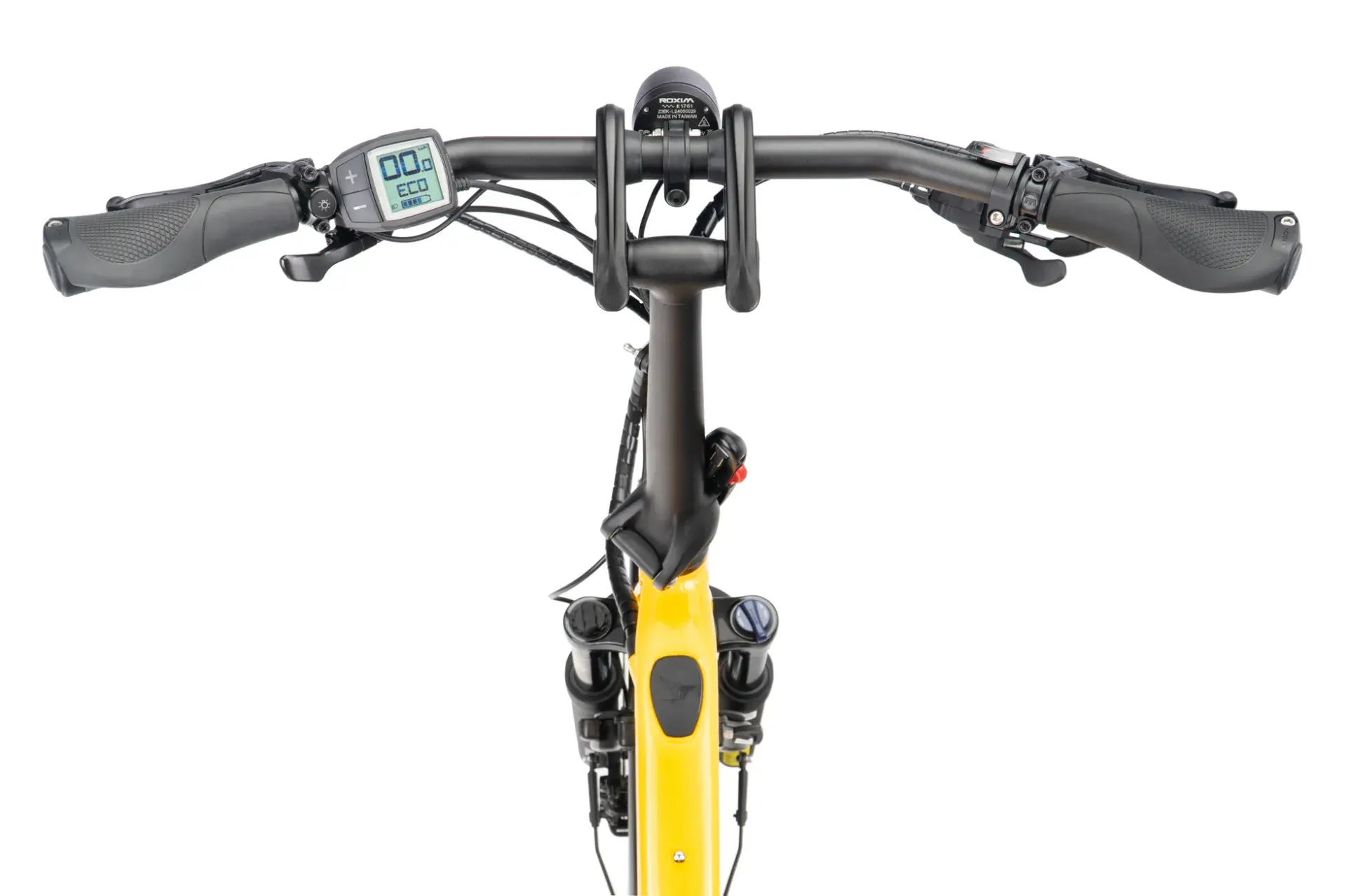

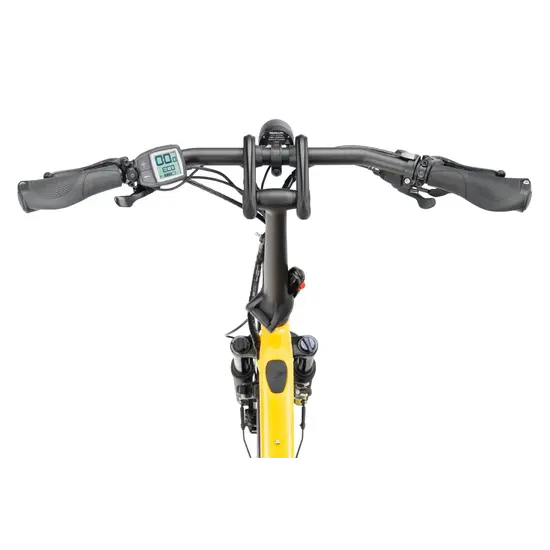

| Display: | Bosch Purion |
| Connect Module: | Bosch Connect Module with GPS/GSM connectivity & anti-theft alarm when subscribed to Flow+; free 12-month trial upon activation |
| On Board Charging: | N/A |
| Transmission Shifter: | Shimano Deore, 1 x 10 spd |
| Cassette - Freewheel: | Shimano 11-42T, 10 spd |
| Chain: | KMC 10 spd, for eBike, EPT corrosion resistant coating |
| Brakes: | Magura MT5, 4-piston hydraulic disc, 180 mm rotor, Sport pads |
| Anti-Locking Braking System (ABS): | N/A |
| Front Hub: | Tern Atlas, Cooling Fins, Boost Thru-Axle, sealed cartridge bearings |
| Rear Hub: | Tern Atlas, Cooling Fins, Boost Thru-Axle, Syntace X-12 standard |
| Rims: | Tern Atlas, ultra wide 36 mm, dual reinforced joint |
| Tyres: | F: Schwalbe Big Ben Plus, 55-406, Green Guard puncture protection, Reflex R: Tern x Schwalbe Super Moto-X, 62-406, Green Guard puncture protection, Reflex |
| Seatpost: | Tern VLT (Very Large Telescope) with LightAction levers |
| Saddle: | Tern GSD by Velo, with rear handle |

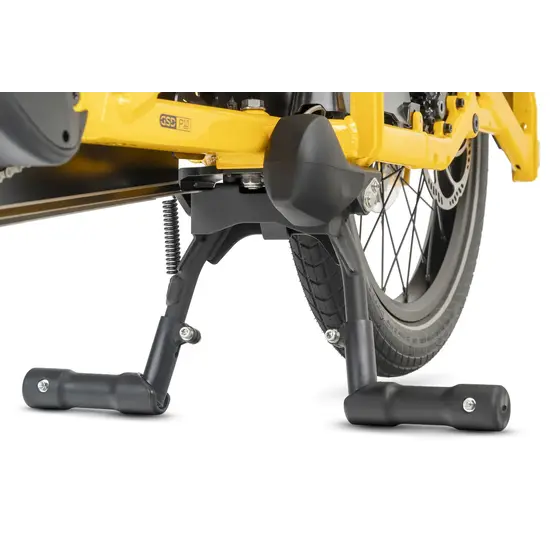

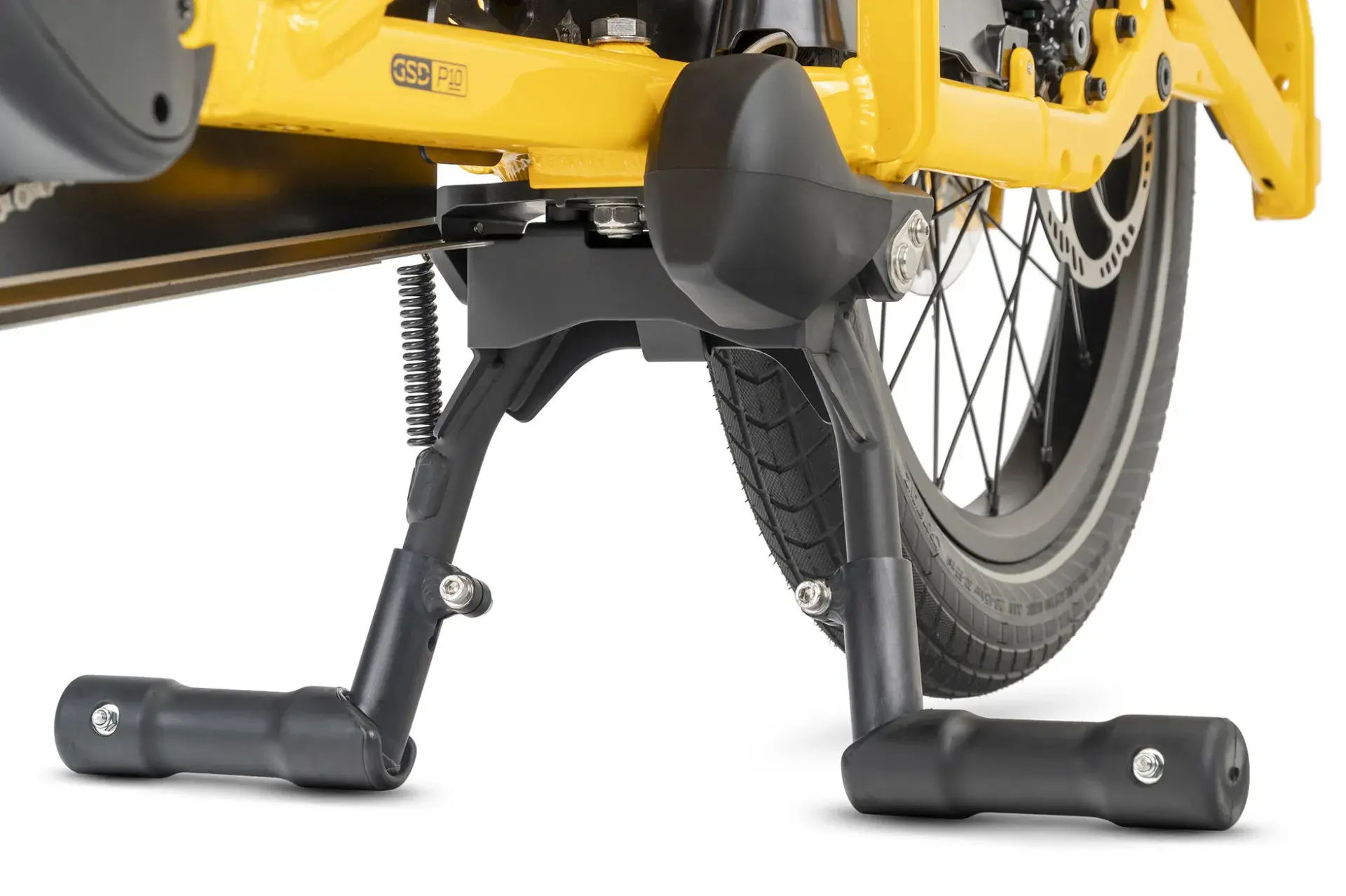

| Kickstand: | Atlas Lockstand, w/ remote unlock, patented technology |
| Lights - Front - Rear: | TIgnis Headlight, Ultra wide low beam - RearStop Brake Light, Always on |
| Fenders: | F: Aluminum R: GSD wheel guard |
| Lock: | ABUS or AXA, keyed-alike with Bosch battery |
| Weight: | 34.64 kg |
| Max Gross Vehicle Weight: | 210 kg |
| Max Rider Weight: | 130 kg |

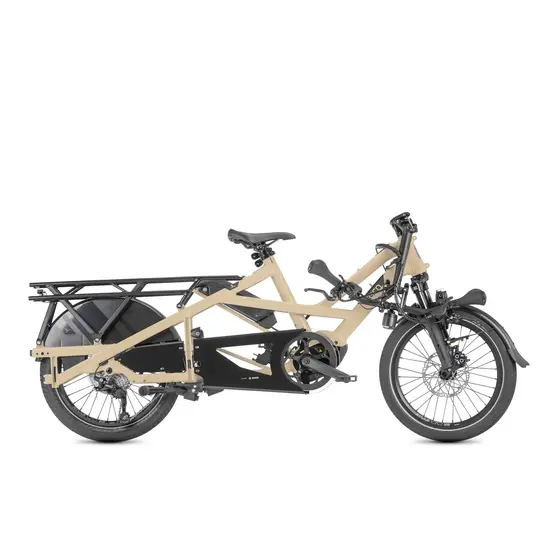

| Folding Size: | 182 × 46 × 87 cm |
| Colours: | Olive Green, School Bus Yellow, Satin Midnight Blue |
